Home >> Chevy Truck >> 1989 >> S10/T10 P/U 2WD L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Dome Lamp >> Blazer & Jimmy

Blazer & Jimmy

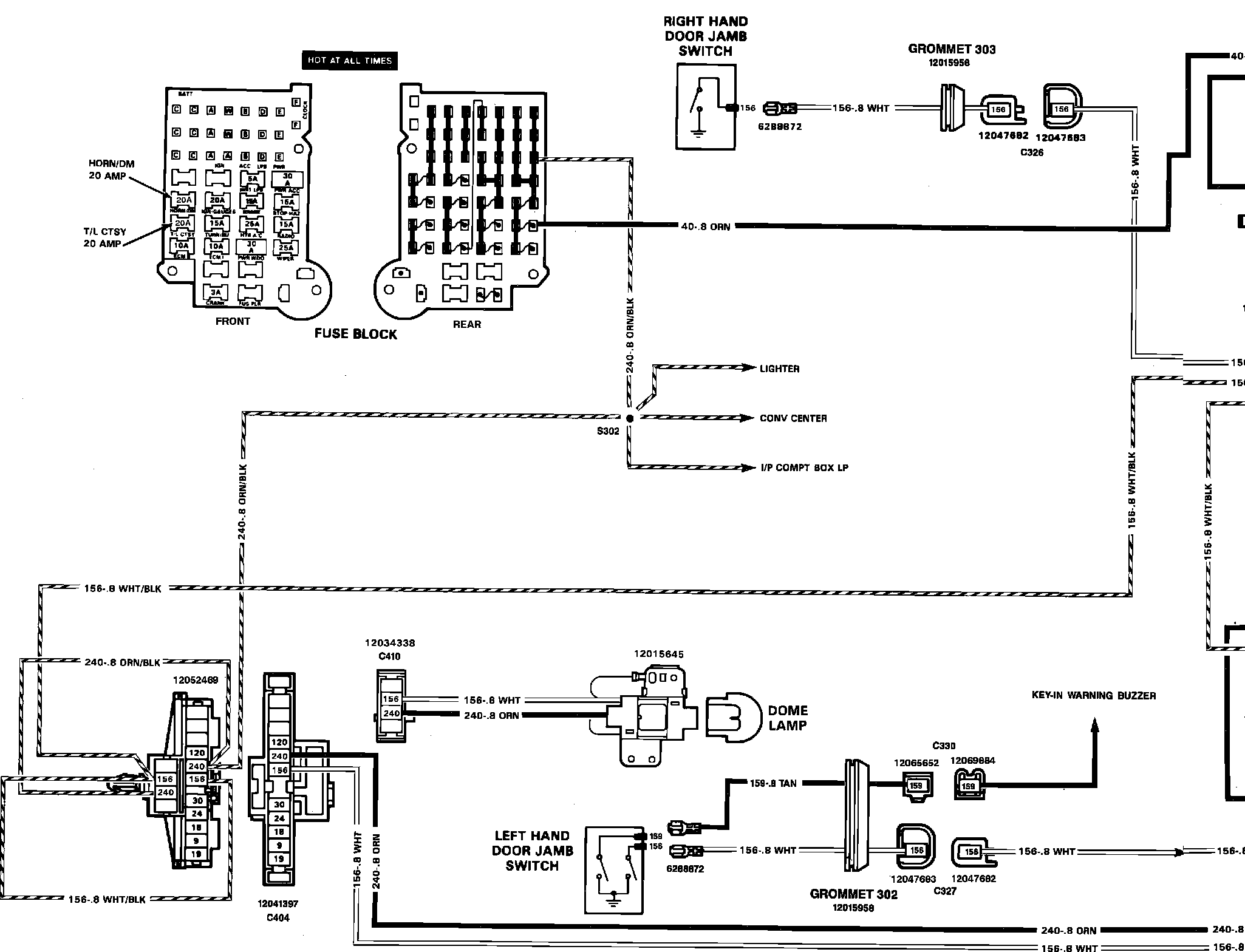

�LzC��zCDome Lamps:
