Chevy Truck
>>
1989
>>
S10/T10 P/U 2WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>

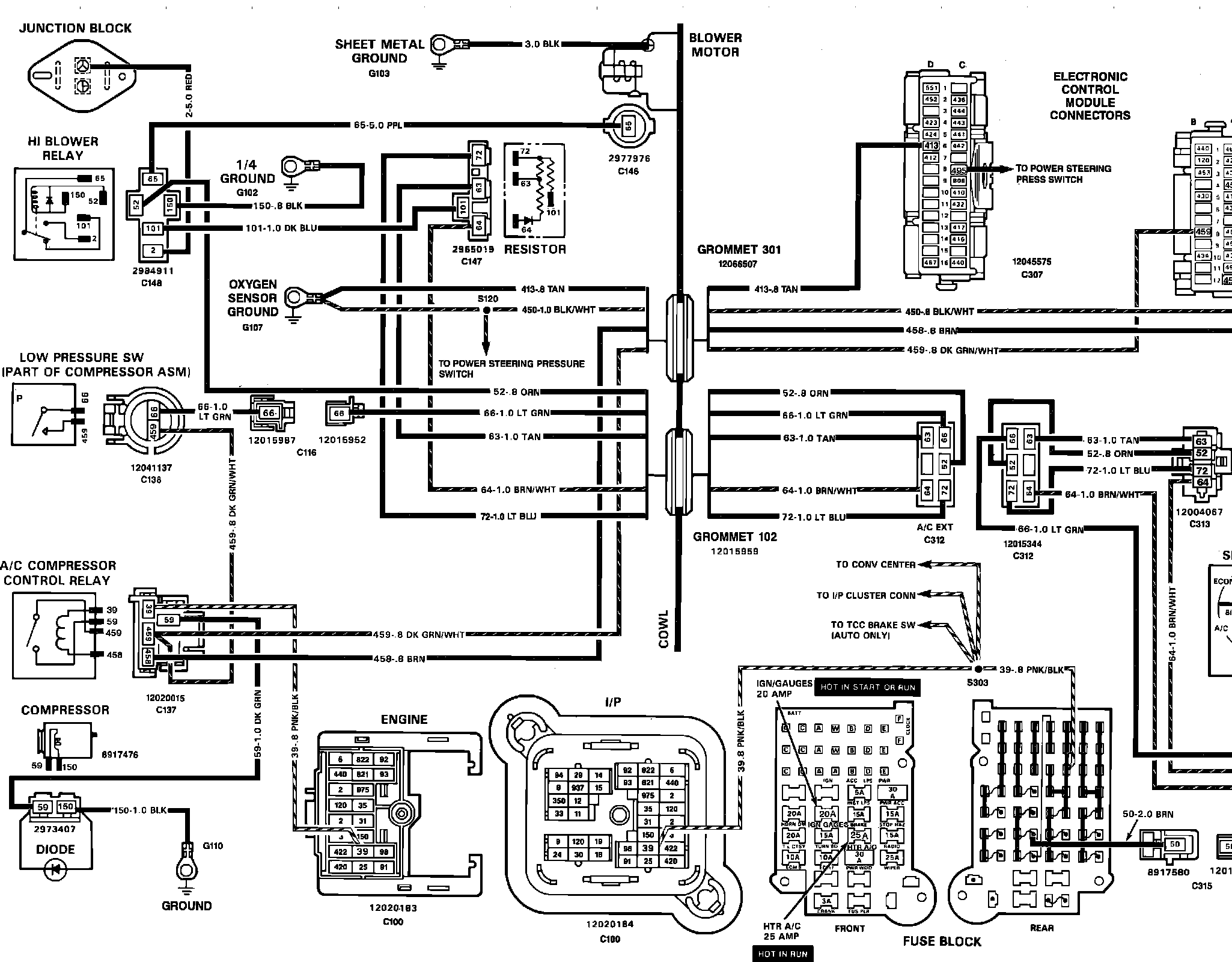

A/C Wiring Diagram
A/C Wiring Diagram
2)H9Air Conditioning:
