Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>

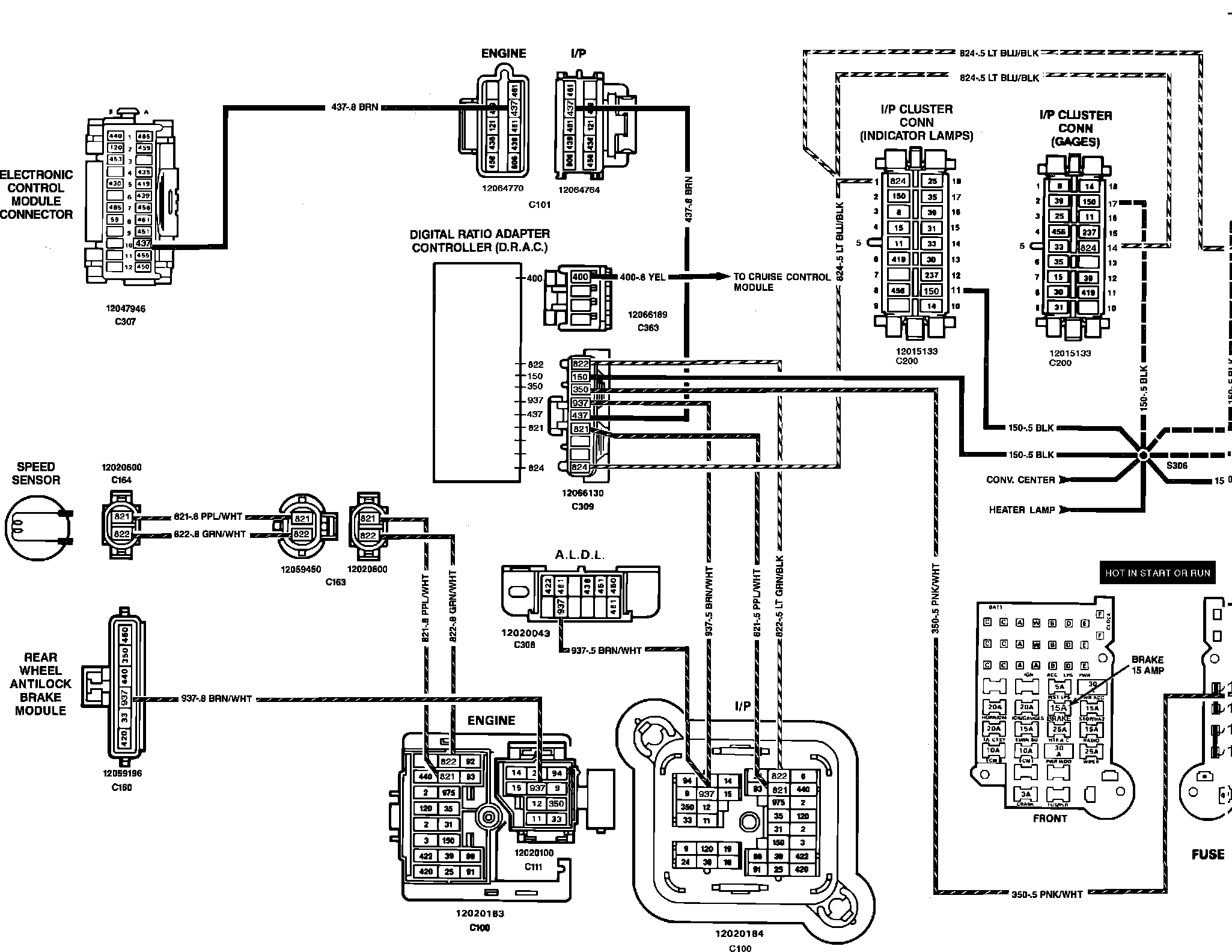

Digital Ratio Adapter Controller (D.R.A.C.)
Digital Ratio Adapter Controller (D.R.A.C.)
6C�#Digital Ratio Adapter Controller:
