Torque Converter Clutch Detent Solenoid
Torque Converter Clutch Detent Solenoid

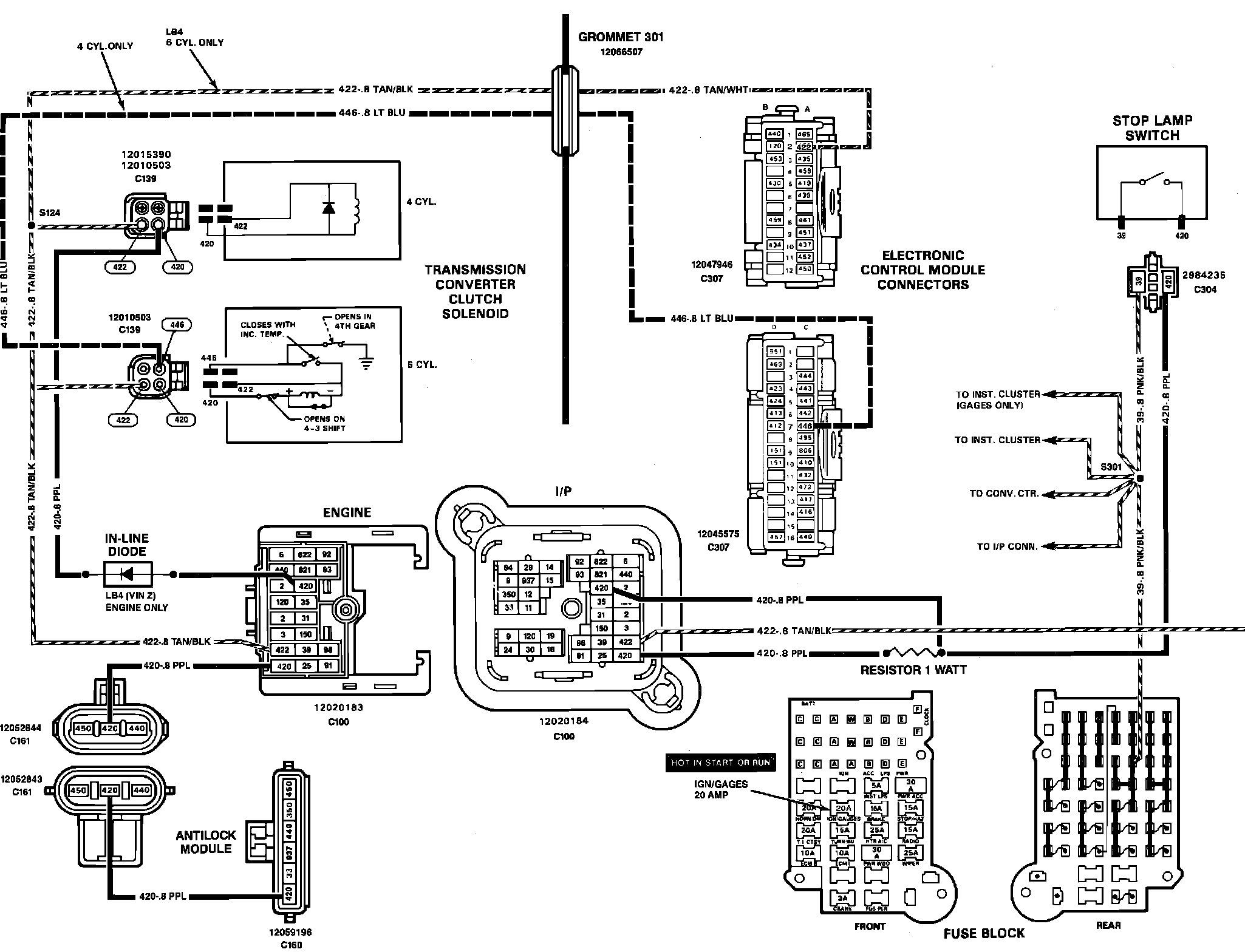

$�%Transmission Converter Clutch Detent Solenoid:
