Chevy Truck
>>
1989
>>
S10/T10 P/U 2WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
Locations
>>

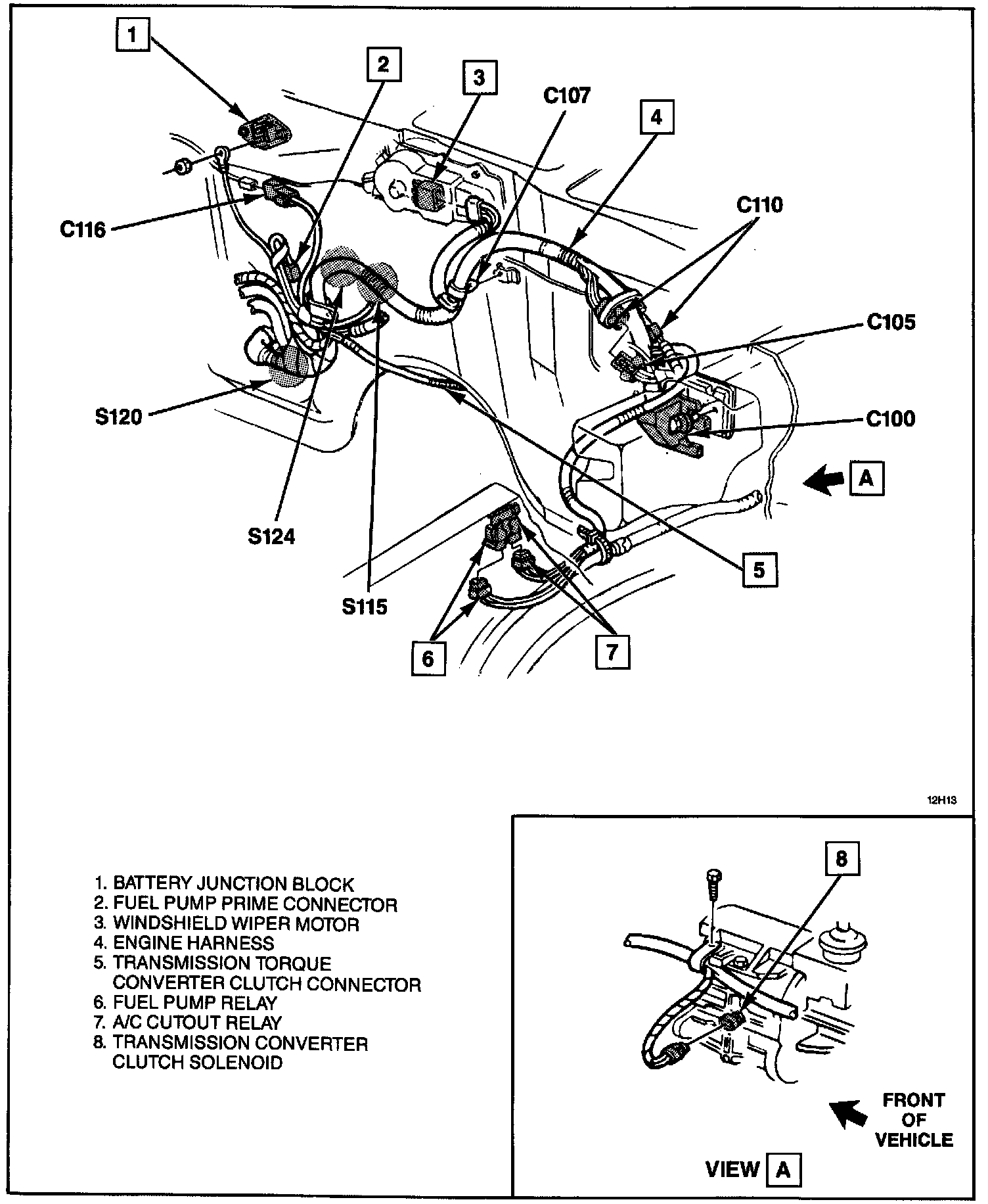

Connector Locations
>>
C100
C100
Engine Harness:
C100 (36 Cavities) - LH dash panel, engine compartment
