Lower

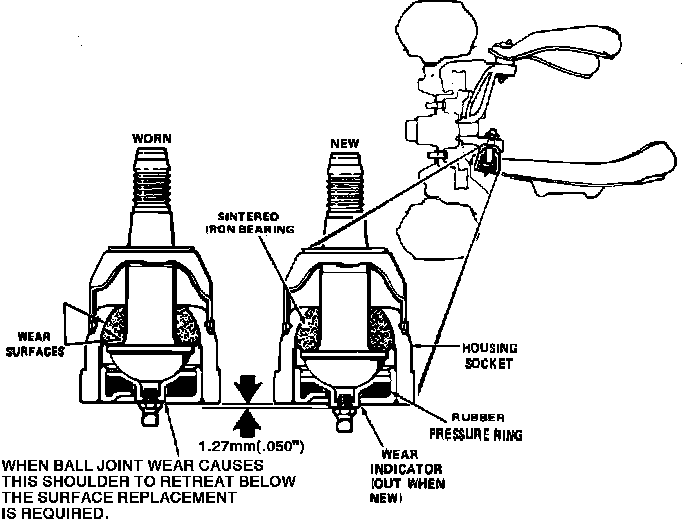

Fig. 20 Lower Ball Joint Wear Indicator. 4 X 2 Models:

BRAVADA, TYPHOON & 4X2 MODELS

The lower ball joint has a visual wear indicator, Fig. 20. To check, vehicle weight must rest on wheels to properly load ball joints.

Fig. 21 Checking Ball Joints. 4 X 4 Models:

4X4 MODELS EXCEPT BRAVADA & TYPHOON

Refer to Fig. 21 for ball joint inspection procedure on 4 x 4 vehicles.
