Clutch Slave Cylinder: Service and Repair

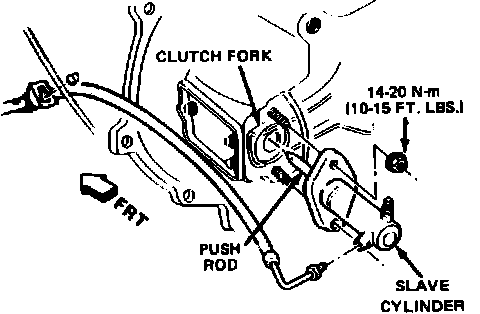

Fig. 3 Clutch Slave Cylinder:

REMOVAL
1. Raise and support vehicle.
2. Disconnect hydraulic line from slave cylinder, Fig. 3.
3. Remove slave cylinder retaining nuts, then the slave cylinder.

INSTALLATION
1. Connect hydraulic line to slave cylinder, Fig. 3.
2. Bleed system.
3. Position slave cylinder on bellhousing, then install retaining nuts and torque to 10-15 ft. lbs.
