Chevy Truck
>>
1989
>>
S10/T10 P/U 2WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Charts
>>

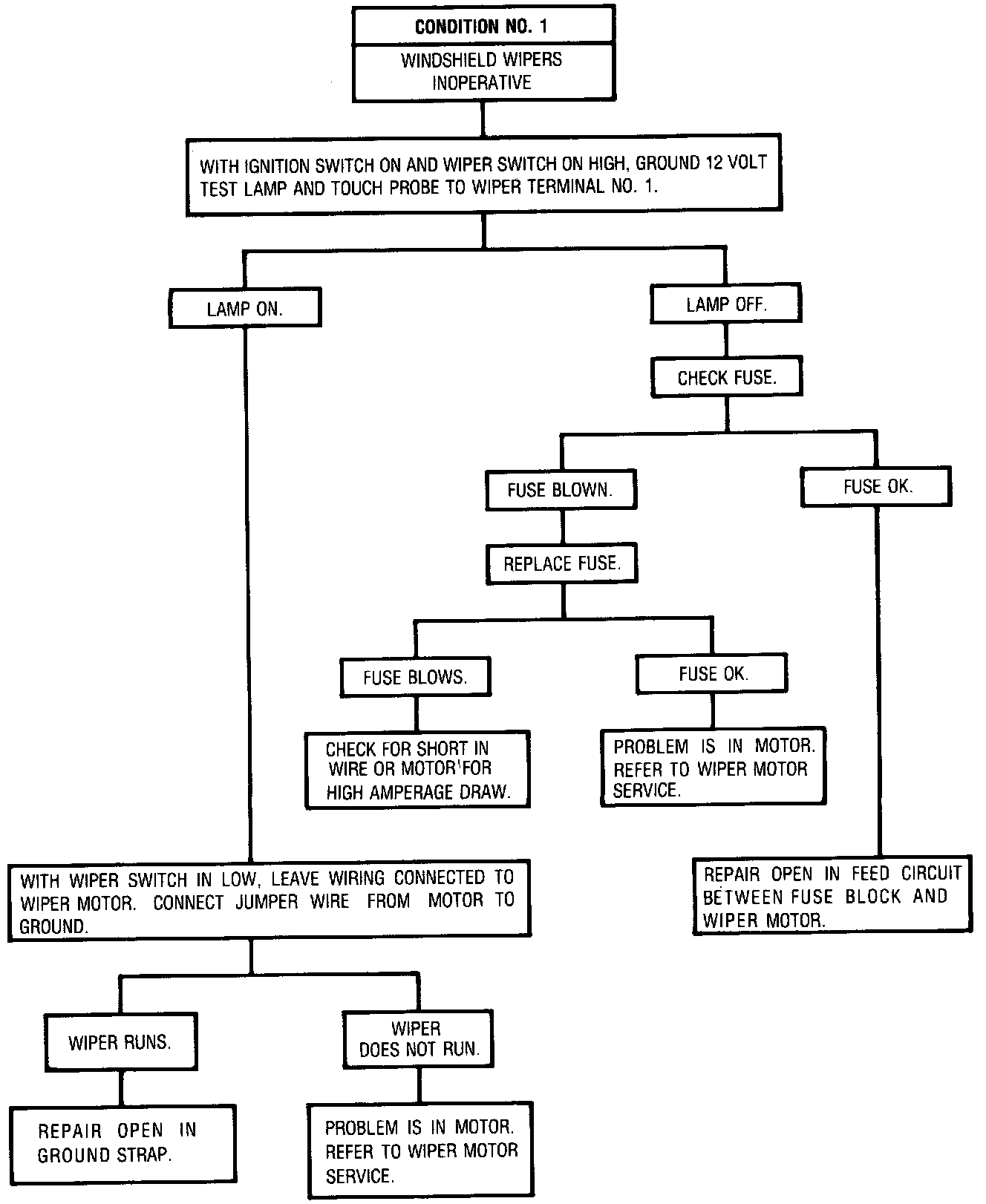

Chart 1 Wipers Do Not Operate In Any Mode
Chart 1 Wipers Do Not Operate In Any Mode
Base Wiper:
