Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1989
>>
S10/T10 P/U 2WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnostic Charts
>>

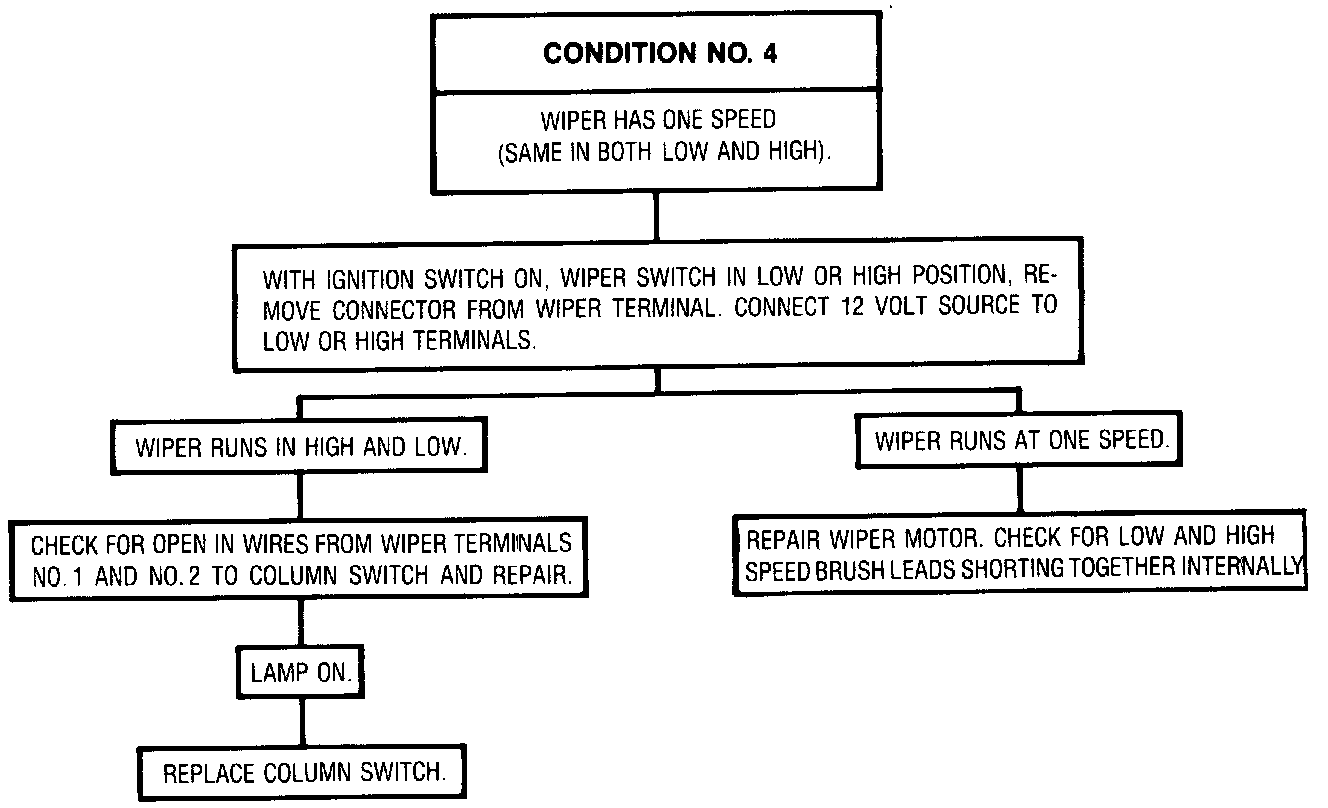

Chart 4 Wiper Has One Speed (Same In Both Low and High)
Chart 4 Wiper Has One Speed (Same In Both Low and High)
Base Wiper:
