Home
>>
Chevy Truck
>>
1989
>>
S10/T10 P/U 2WD V6-173 2.8L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
With Four Wheel Antilock Brakes (4WAL)
With Four Wheel Antilock Brakes (4WAL)

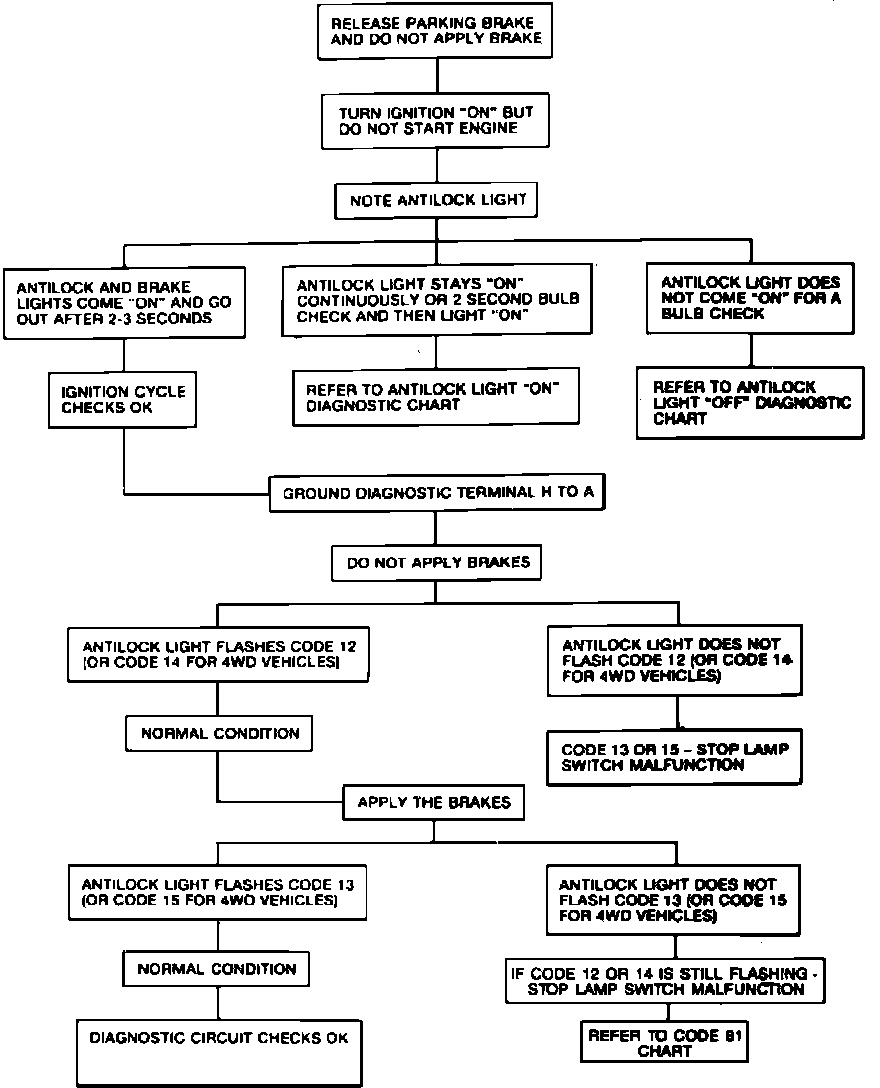

Diagnostic Circuit Check.:
