Home >> Chevy Truck >> 1989 >> Suburban 3/4 Ton 4WD V8-379 6.2L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cargo Lamp

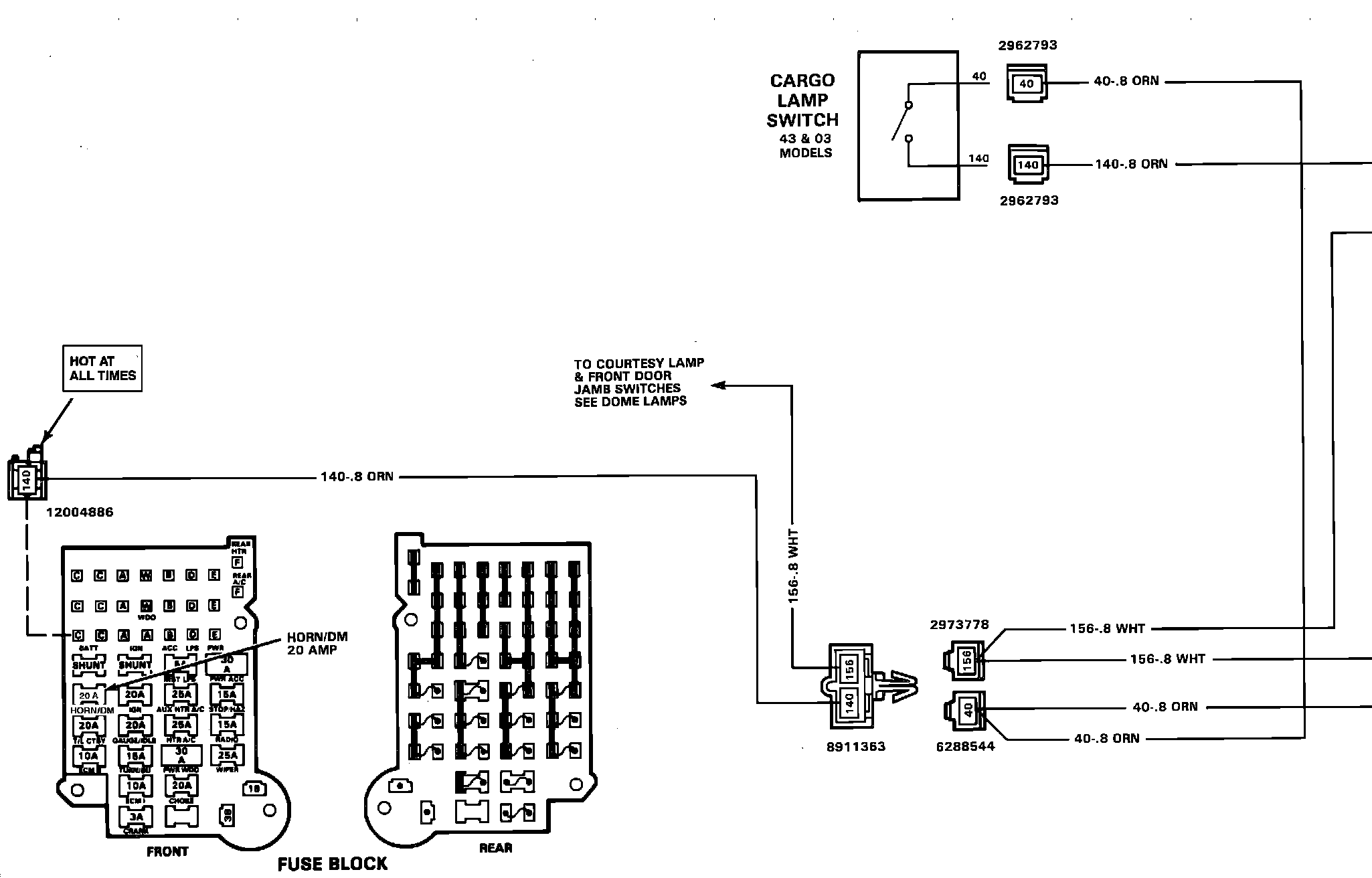

Cargo Lamp

�CCargo Lamps:
