Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1989
>>
Suburban 3/4 Ton 4WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Without Air Conditioning
>>

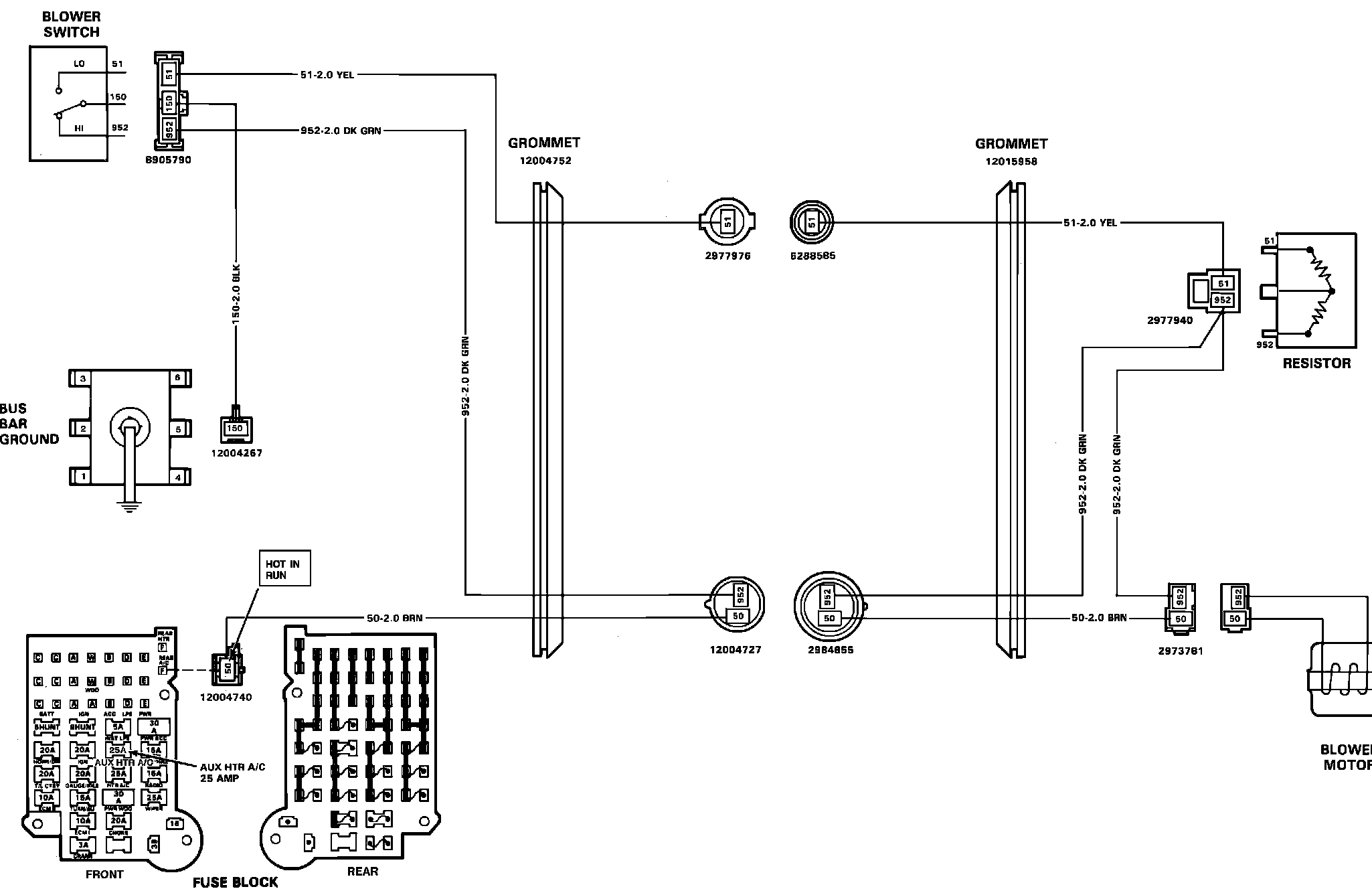

Rear Heater
Rear Heater
��9Auxiliary Heater:
