Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1989
>>
Suburban 3/4 Ton 4WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>

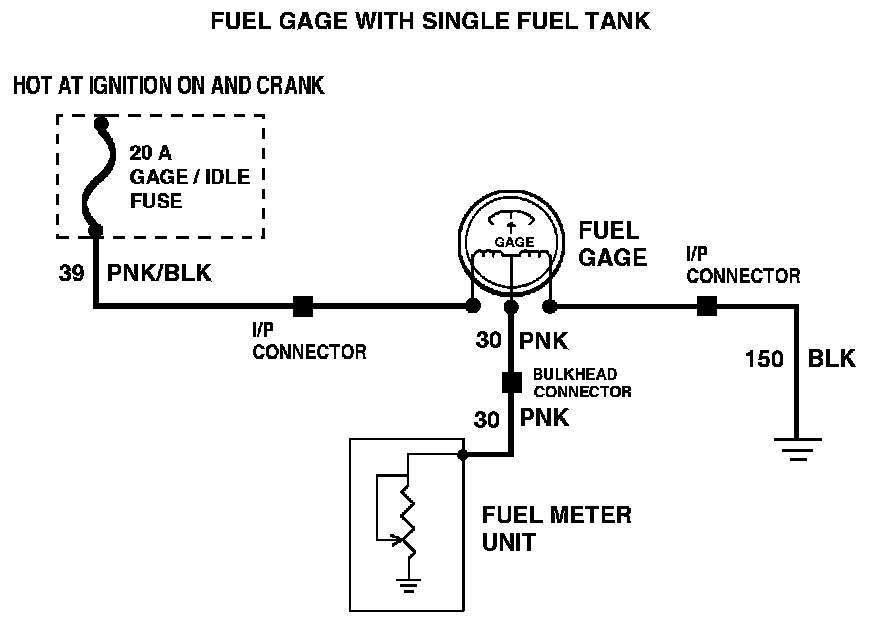

Fuel Gauge
>>
With Single Fuel Tank
With Single Fuel Tank
