Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1989
>>
Suburban 3/4 Ton 4WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
License Plate Lamp
>>
Pick-Up & Extended Pick-Up
Pick-Up & Extended Pick-Up

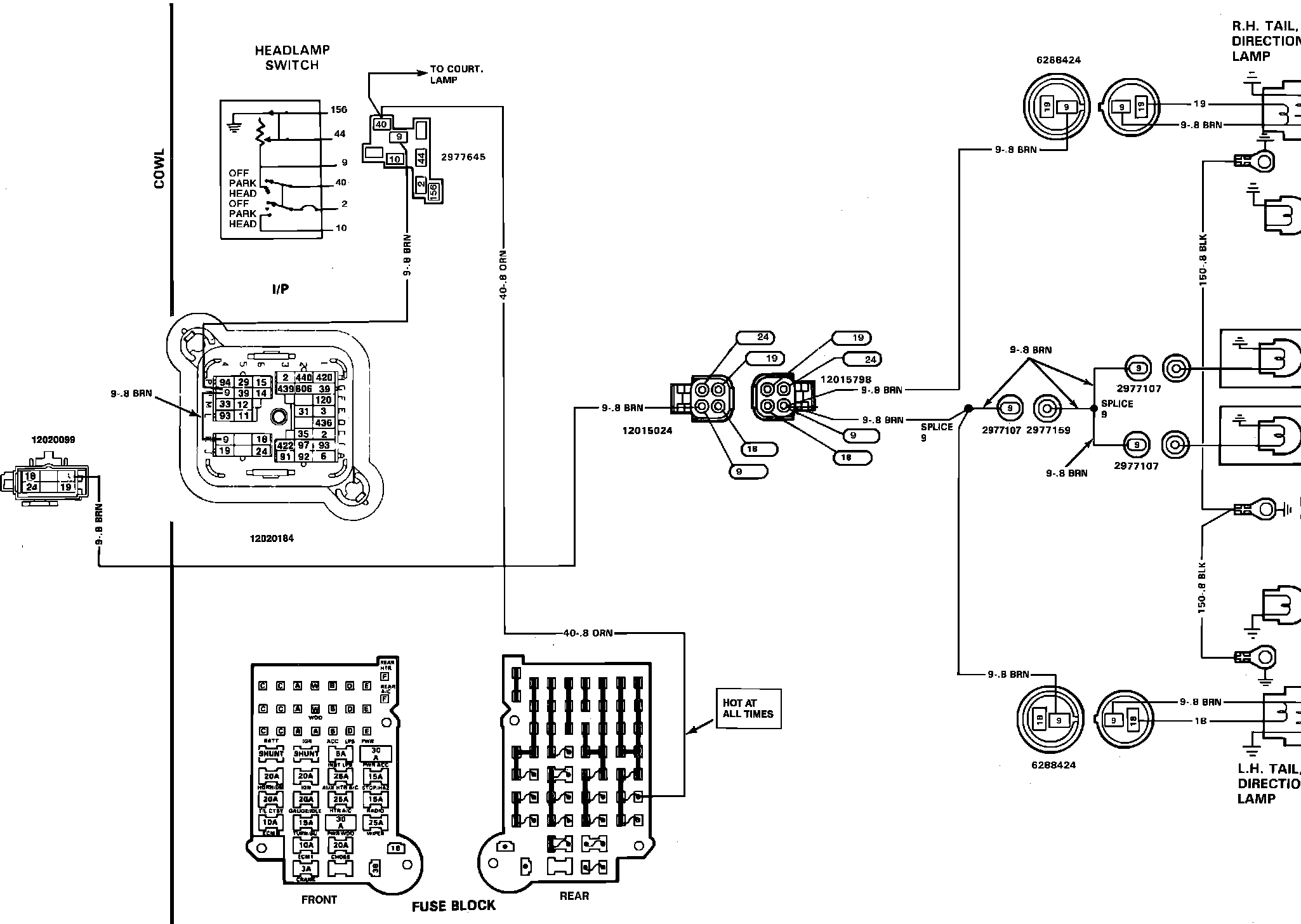

9f�DLicense Lamps (Pick-Up & Extended Pick-Up):
