Home >> Chevy Truck >> 1989 >> Suburban 3/4 Ton 4WD V8-379 6.2L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Parking Lamp >> Deluxe Front End

Deluxe Front End

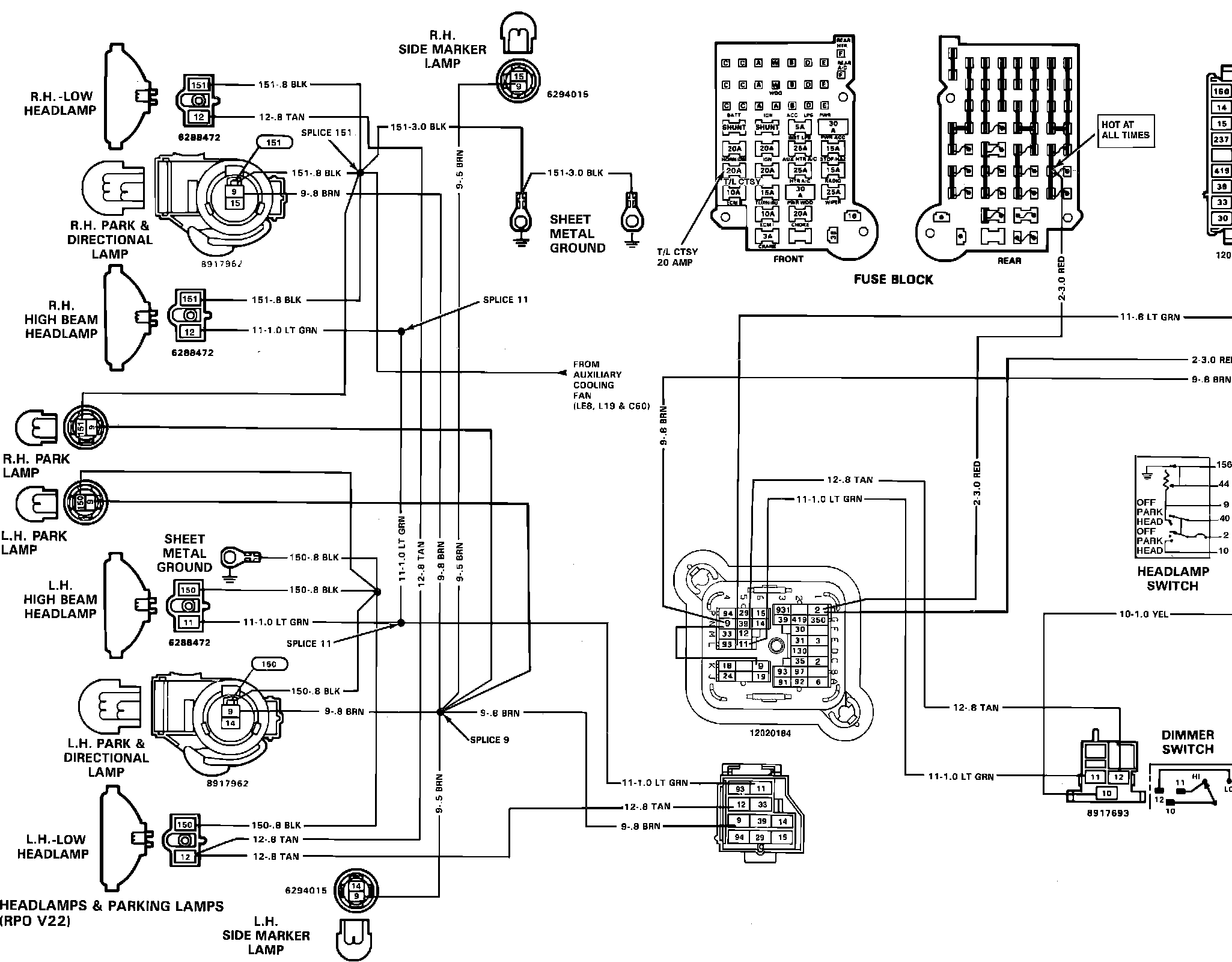

��mDHeadlamps & Parking Lamps (With Deluxe Front End):
