Home >> Chevy Truck >> 1989 >> Suburban 3/4 Ton 4WD V8-379 6.2L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> Two Door

Two Door

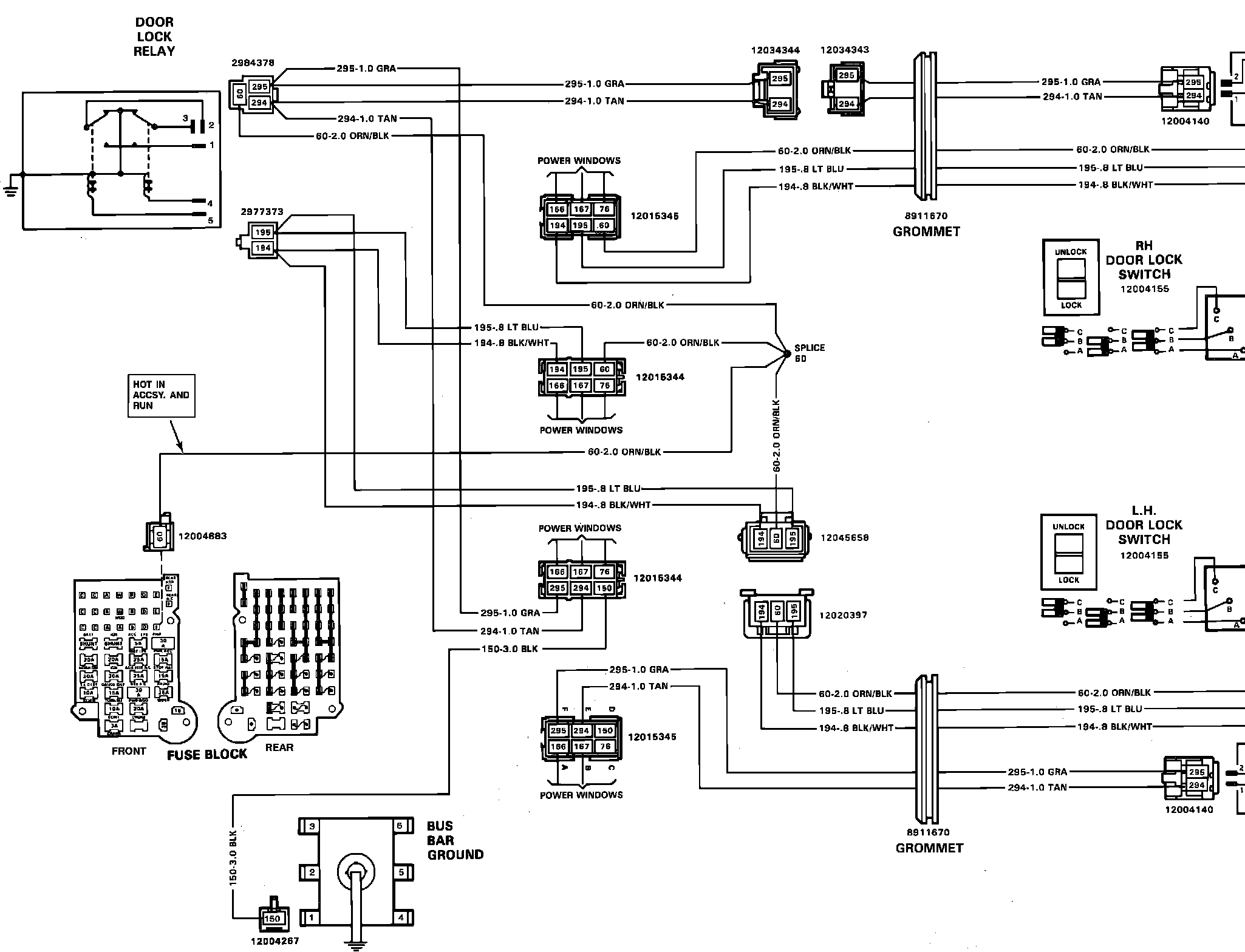

��>Power Door Locks (2-Door):
