Home >> Chevy Truck >> 1989 >> Suburban 3/4 Ton 4WD V8-379 6.2L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp >> Stepside Pickup

Stepside Pickup

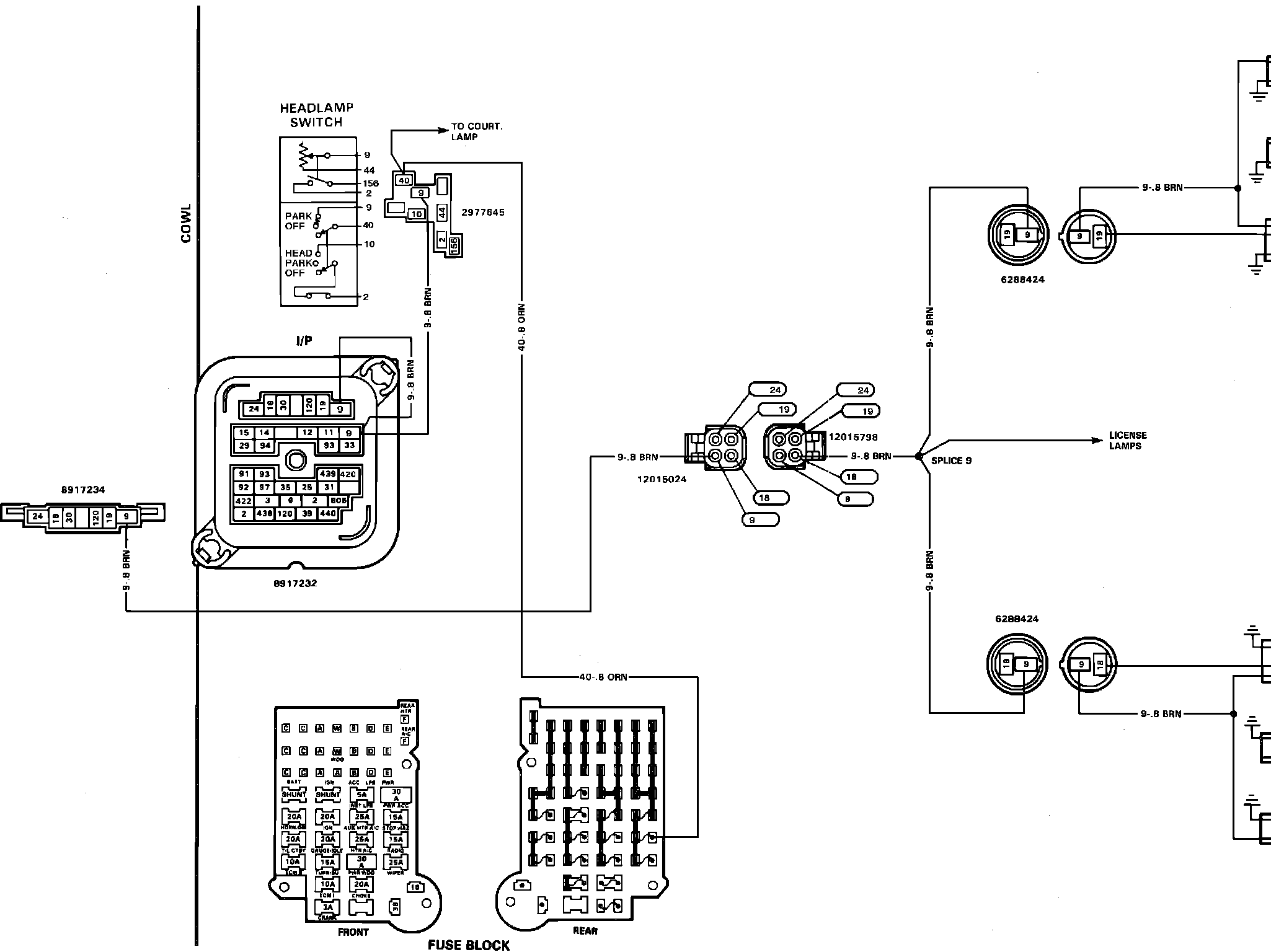

��DTail Lamps (Stepside Pick-Up):
