Home >> Chevy Truck >> 1989 >> Suburban 3/4 Ton 4WD V8-379 6.2L DSL >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> With Air Conditioning >> Front Heater and A/C Blower Controls

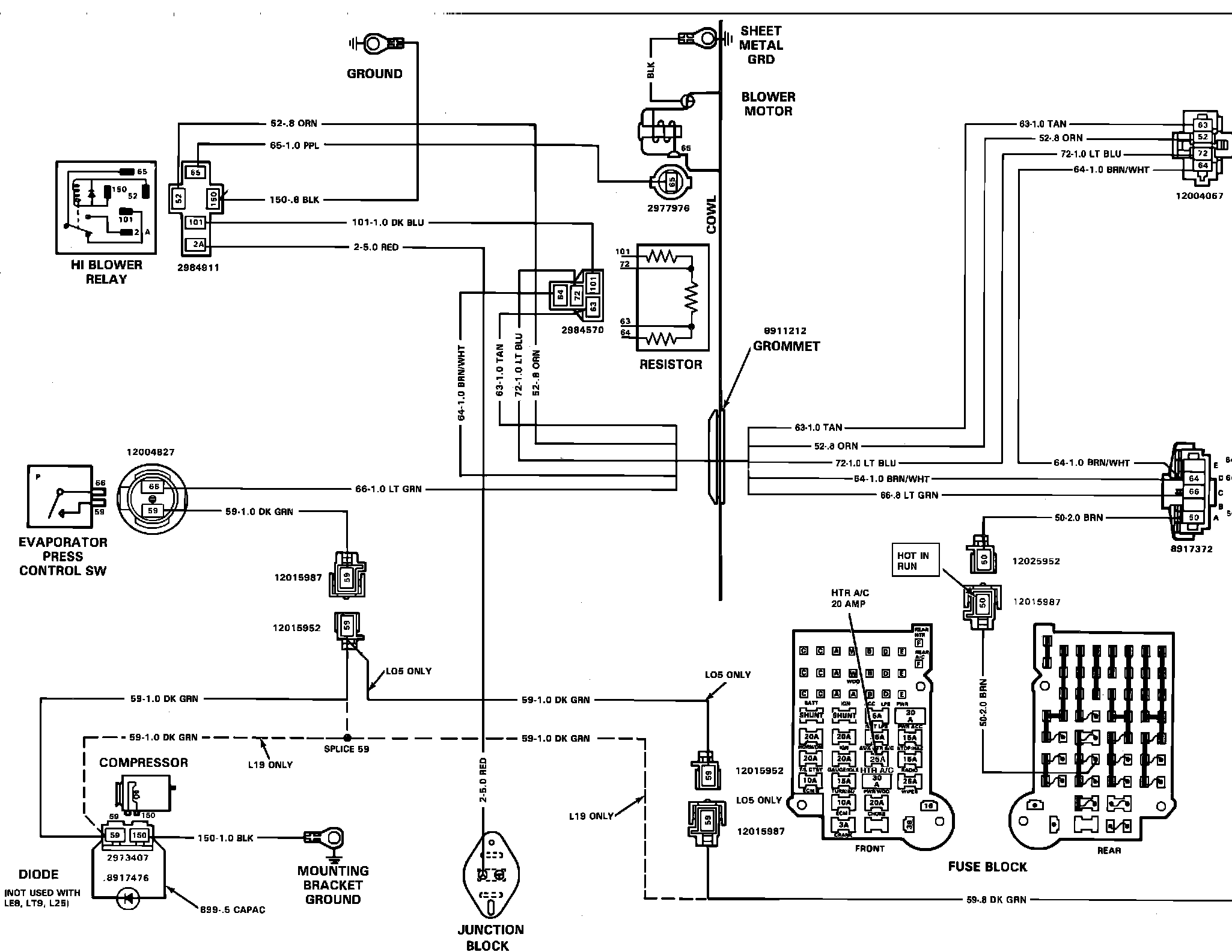

Front Heater and A/C Blower Controls

°��9Air Conditioning:
