Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
1989
>>
Suburban 3/4 Ton 4WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
With Air Conditioning
>>
Rear Air Conditioning

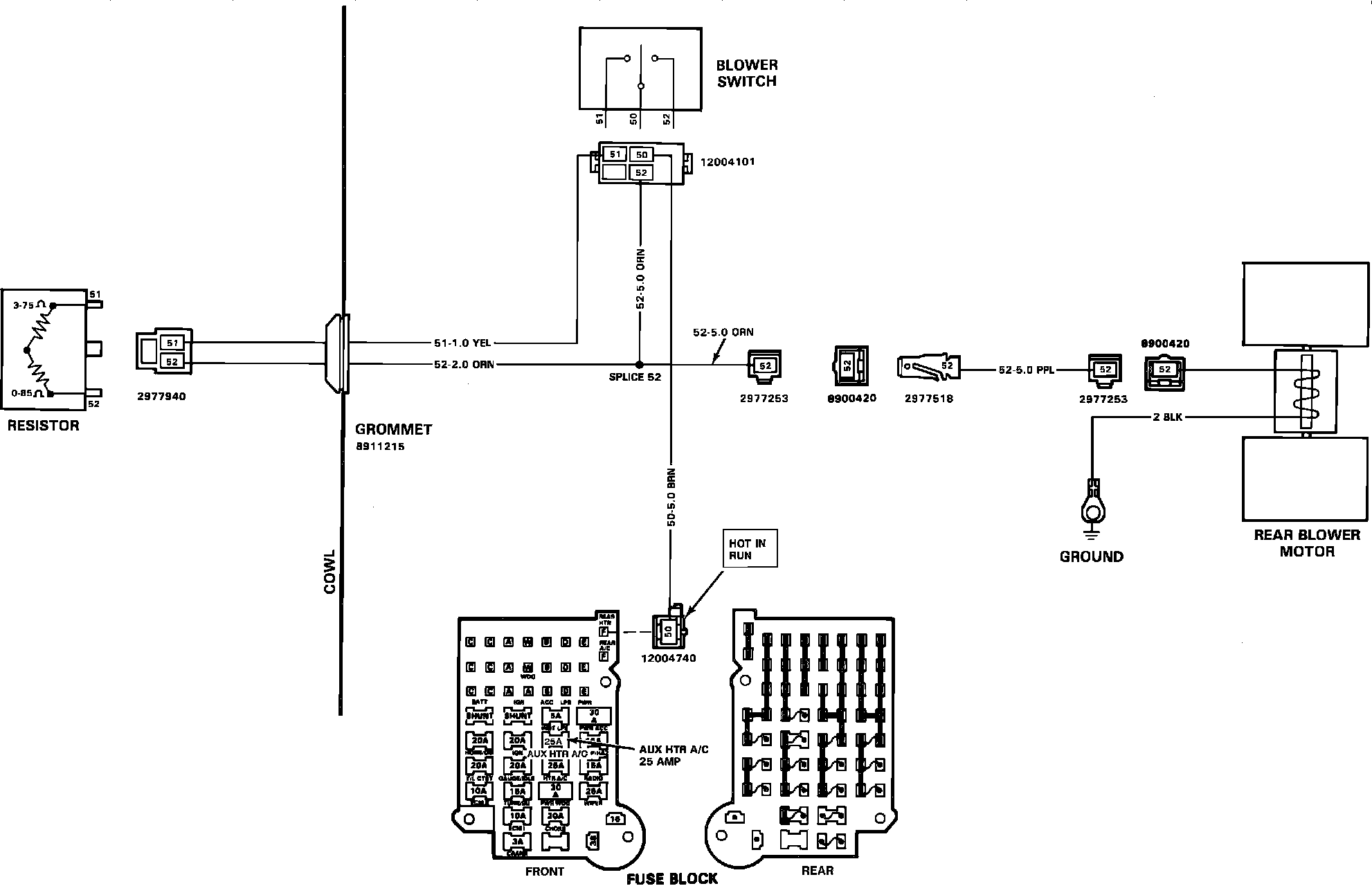

Rear Air Conditioning
Rear Air Conditioning:
