Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
2000
>>
Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Underhood Lamp Inoperative
Underhood Lamp Inoperative

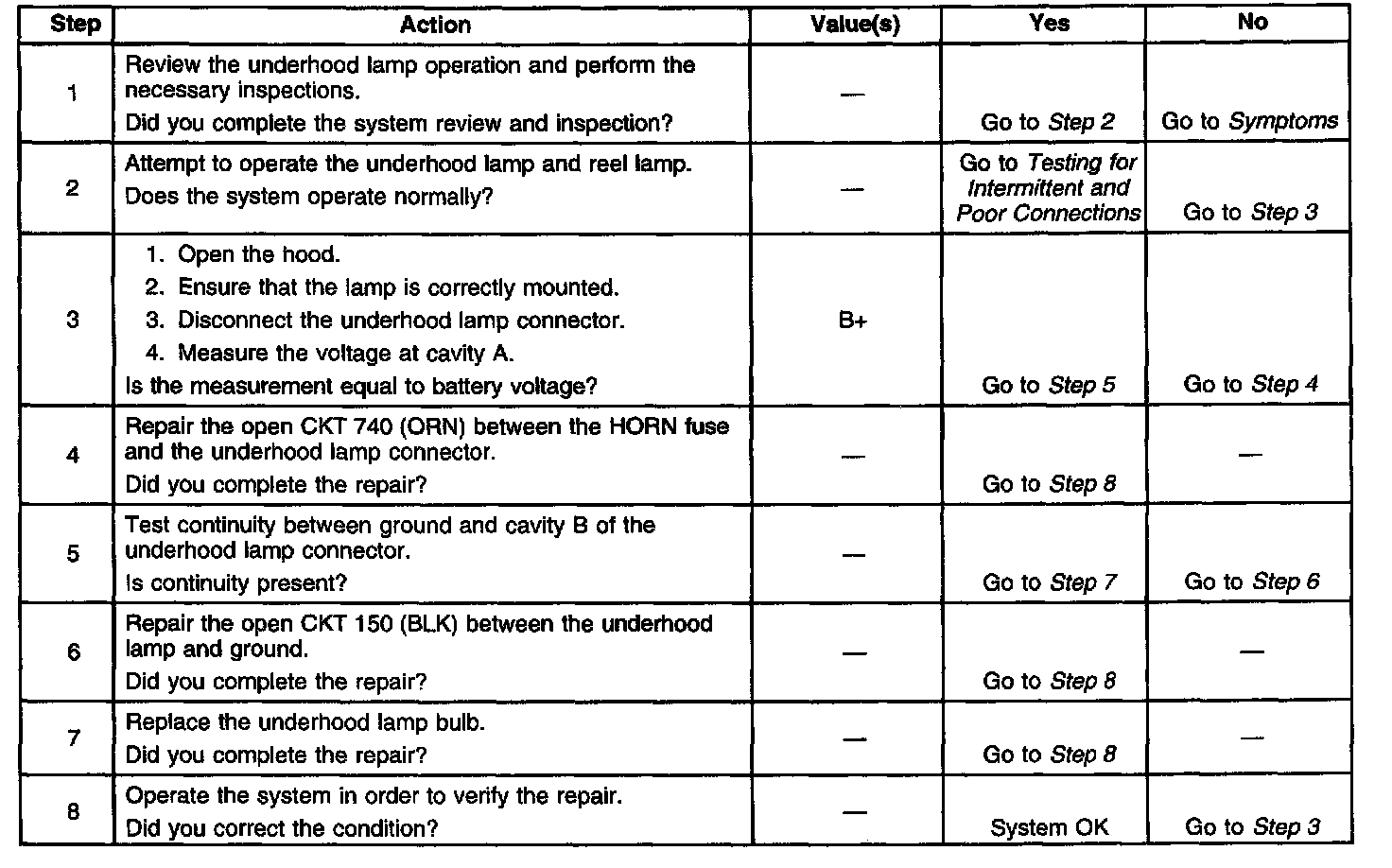

Diagnostic Chart:
