Home
>>
Chevy Truck
>>
2002
>>
Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

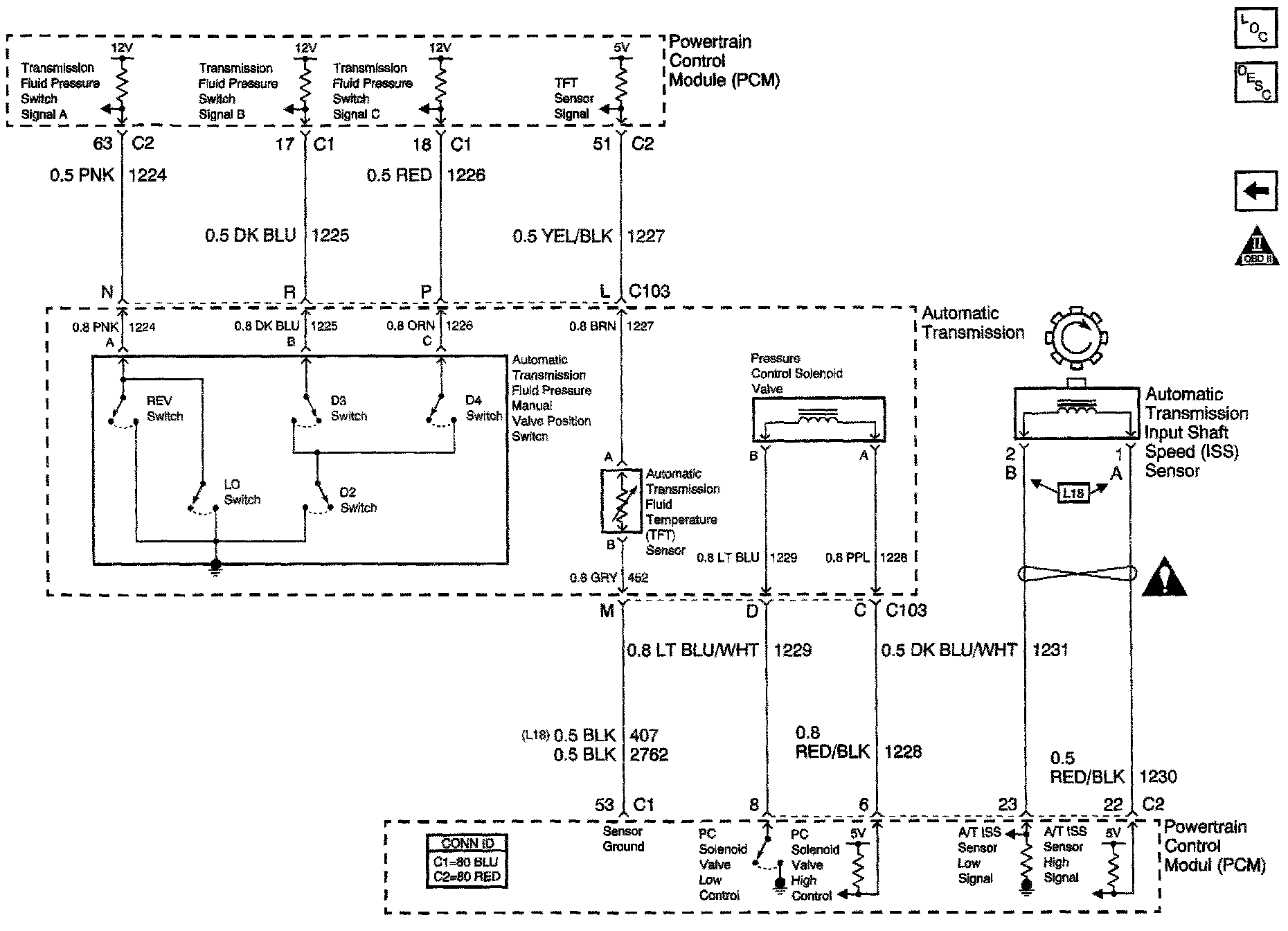

4L80-E/4L85-E Automatic Transmission
>>
(Sensor, Solenoid and GND Controls)
(Sensor, Solenoid and GND Controls)
