Canister Purge Solenoid

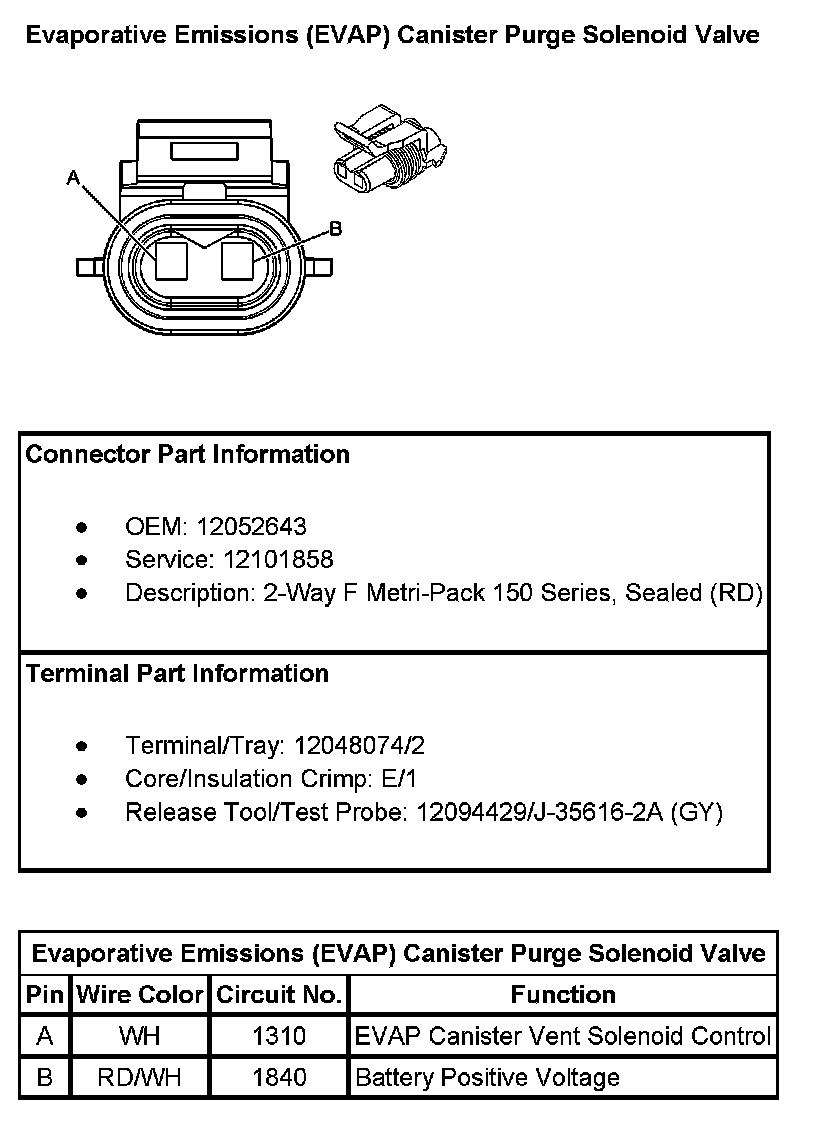

Evaporative Emissions (EVAP) Canister Purge Solenoid Valve:

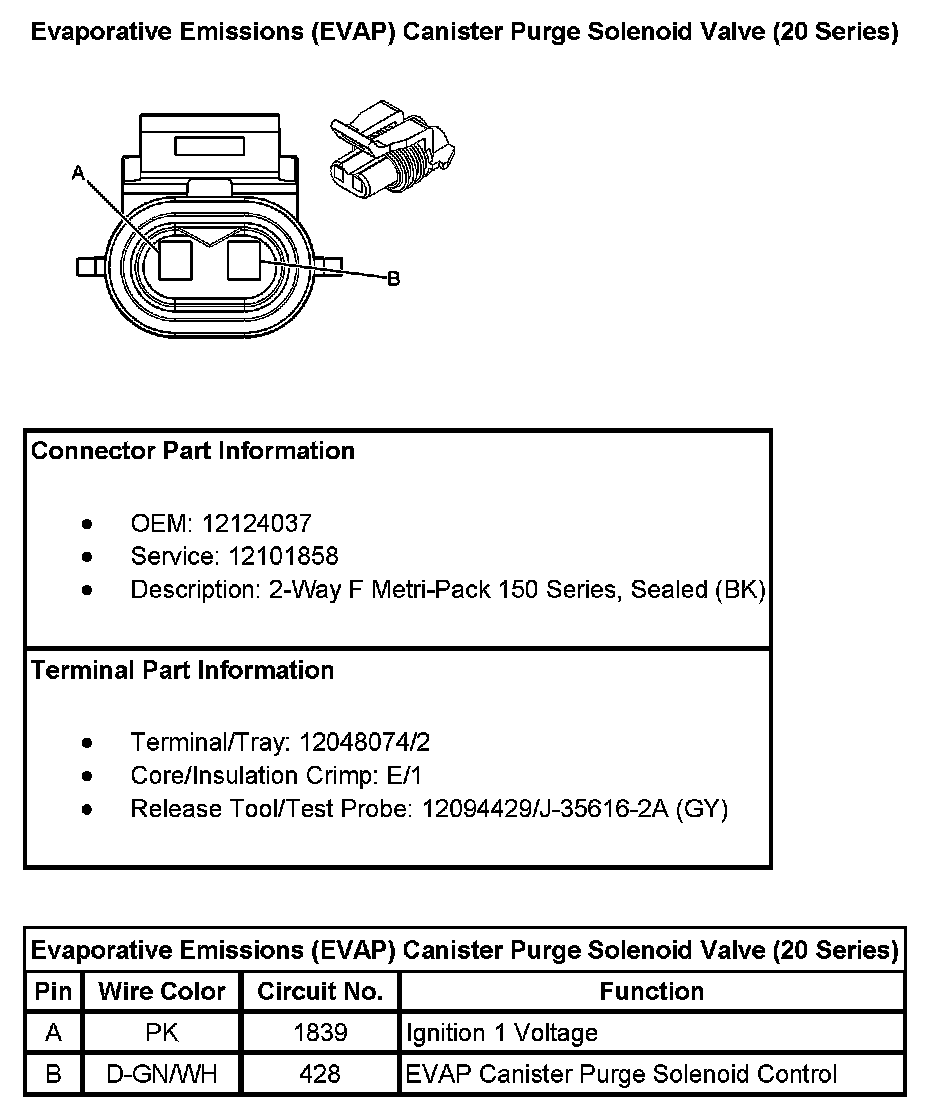

Evaporative Emissions (EVAP) Canister Purge Solenoid Valve (20 Series):
