Hydraulic Brake Booster
Hydraulic Brake Booster
Antilock Brake System Connector End Views

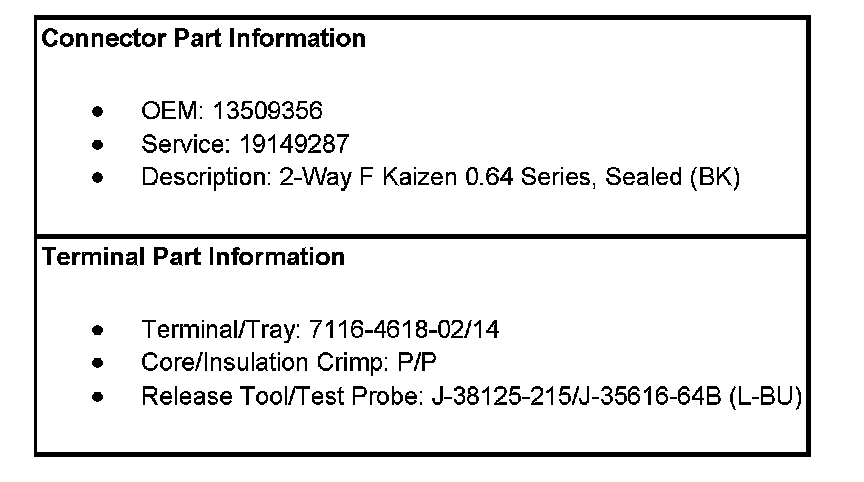

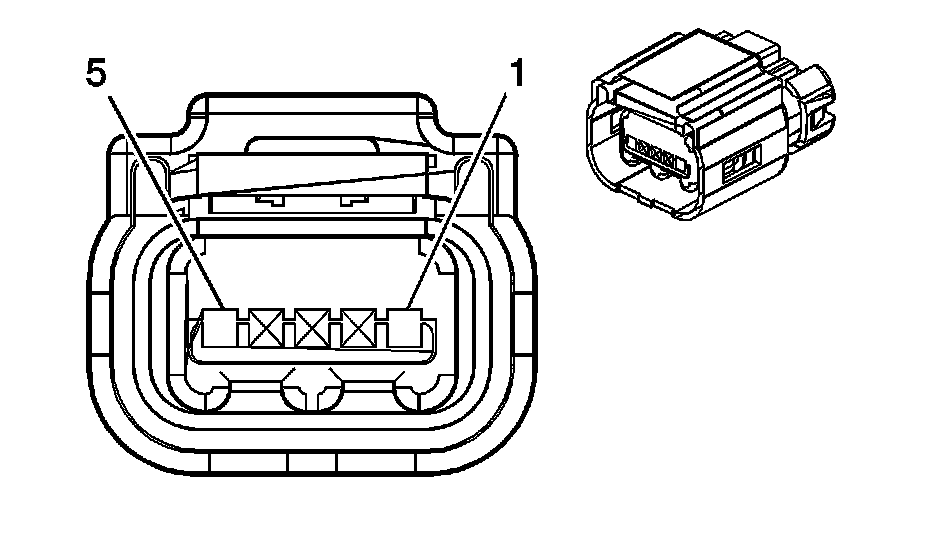

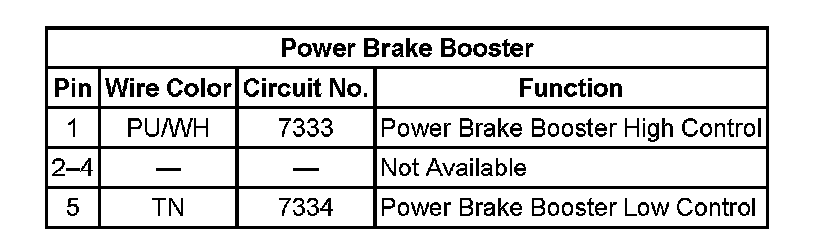

Power Brake Booster:
