Power Seat Motor
>>
Folding Seat Motor
Folding Seat Motor

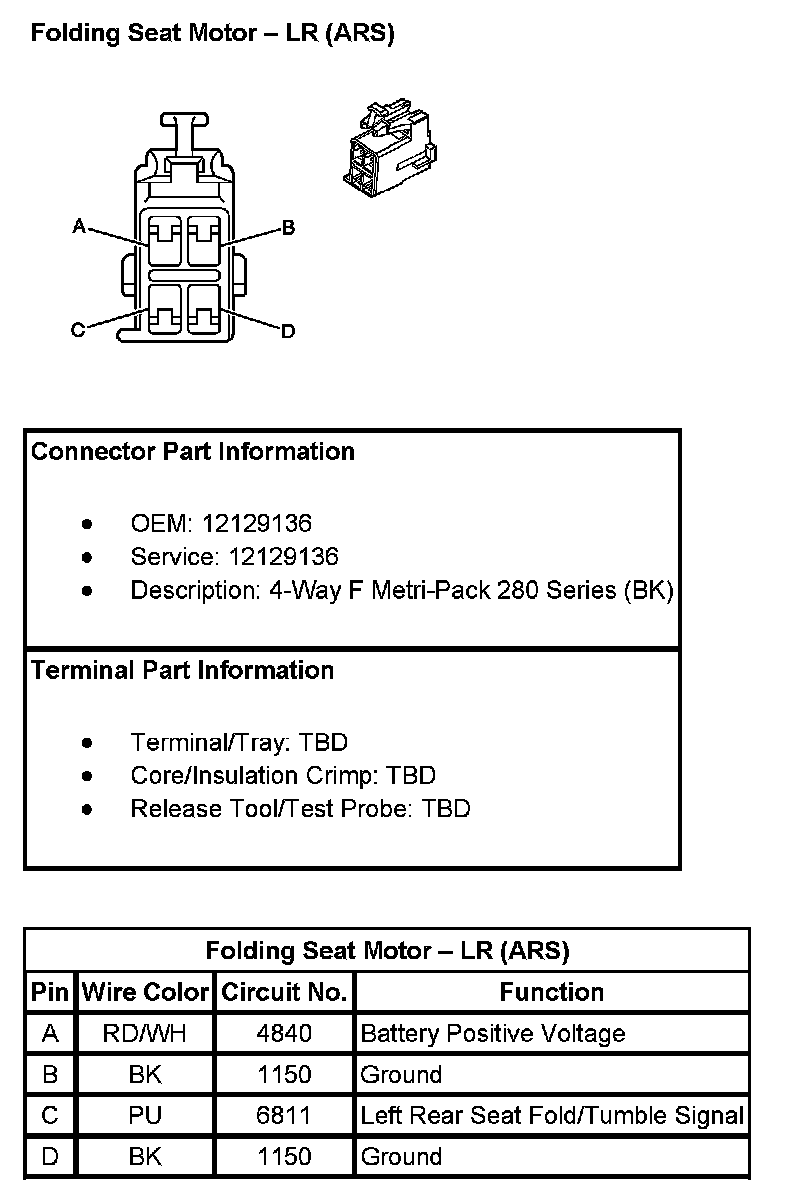

Folding Seat Motor - LR (With RPO Code ARS):

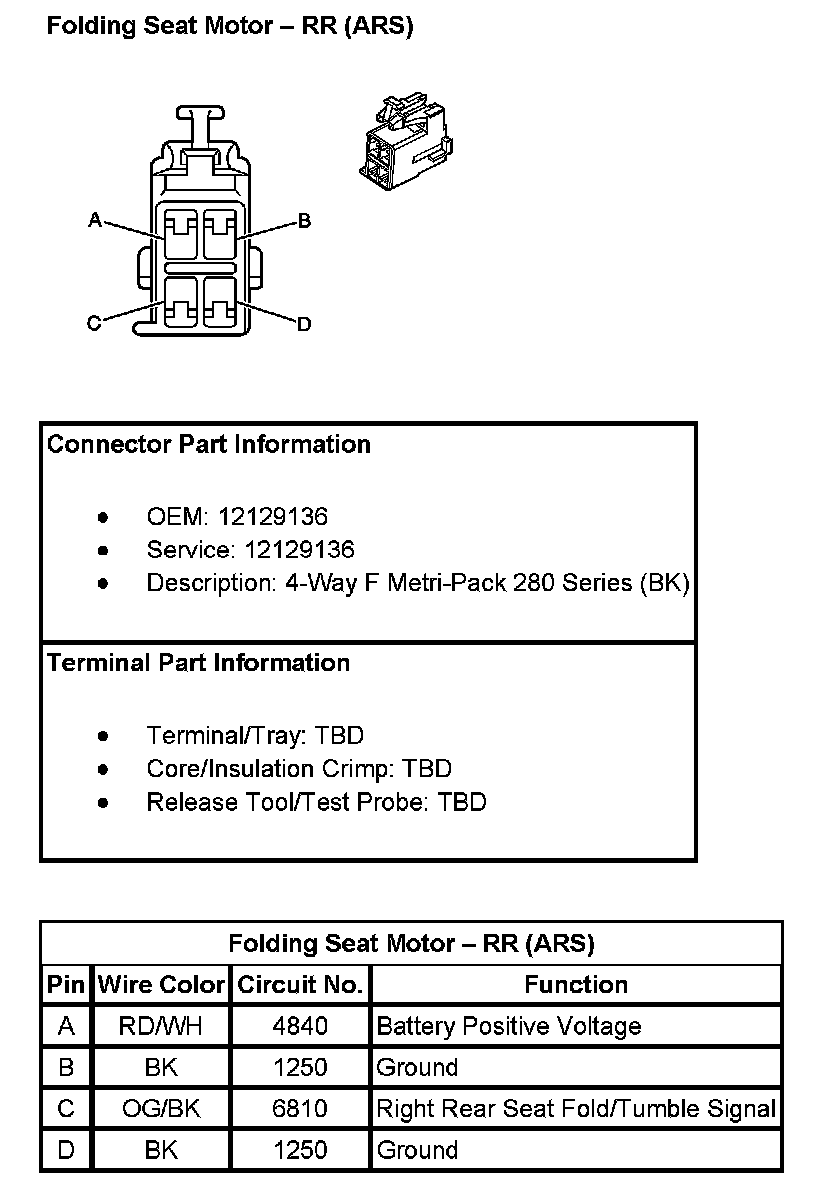

Folding Seat Motor - RR (With RPO Code ARS):
