Radio C2 (Except Y91)
Radio C2 (Except Y91)

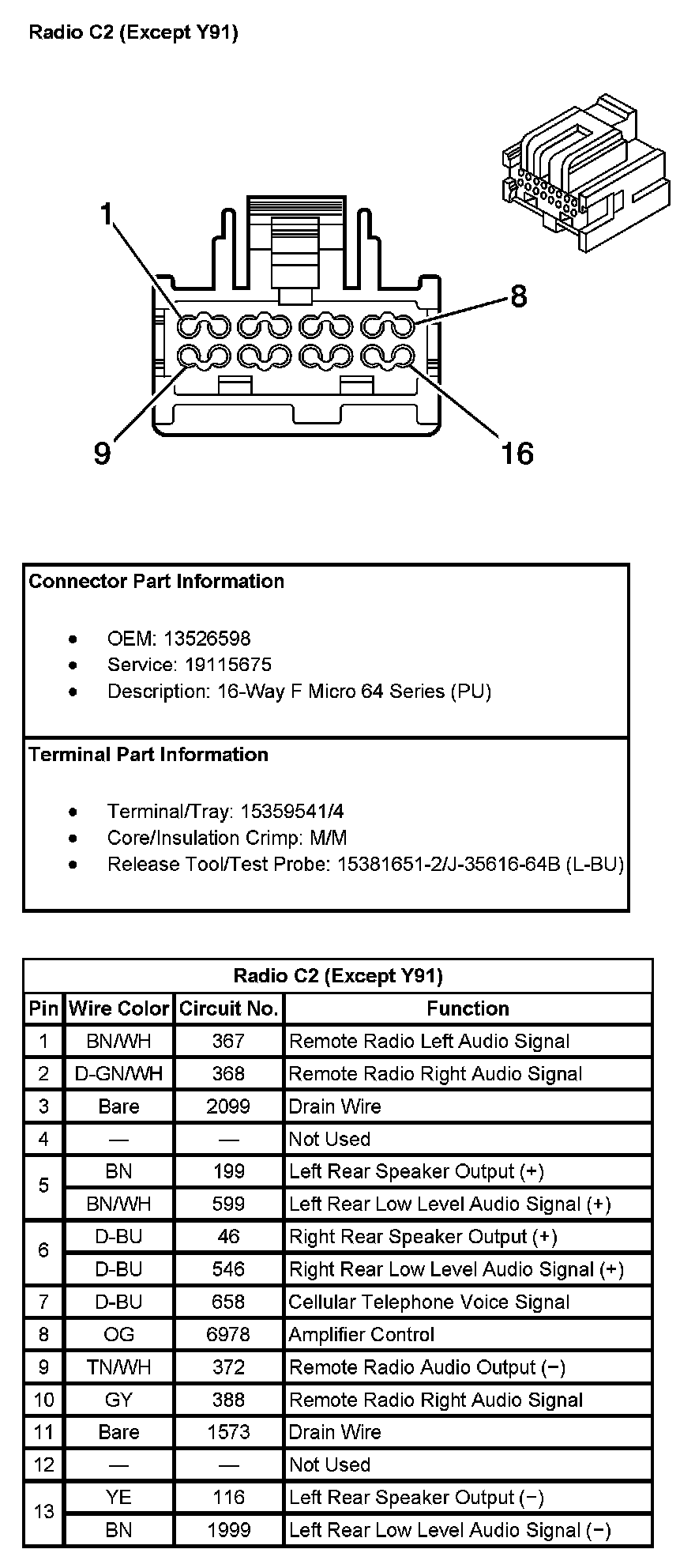

Radio C2 (Except RPO Code Y91) (Pin 1 To 13):

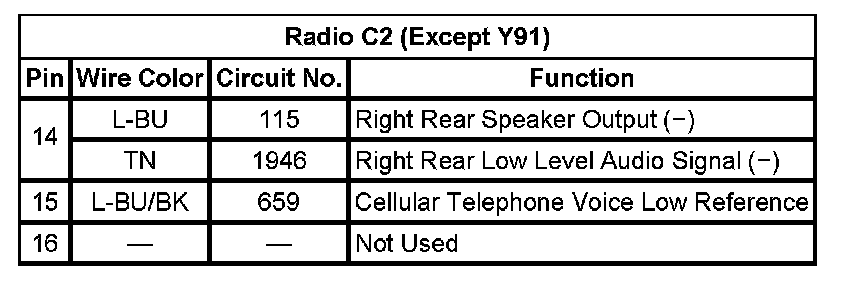

Radio C2 (Except RPO Code Y91) (Pin 14 To 16):
