Seat Belt Tensioner
Seat Belt Tensioner

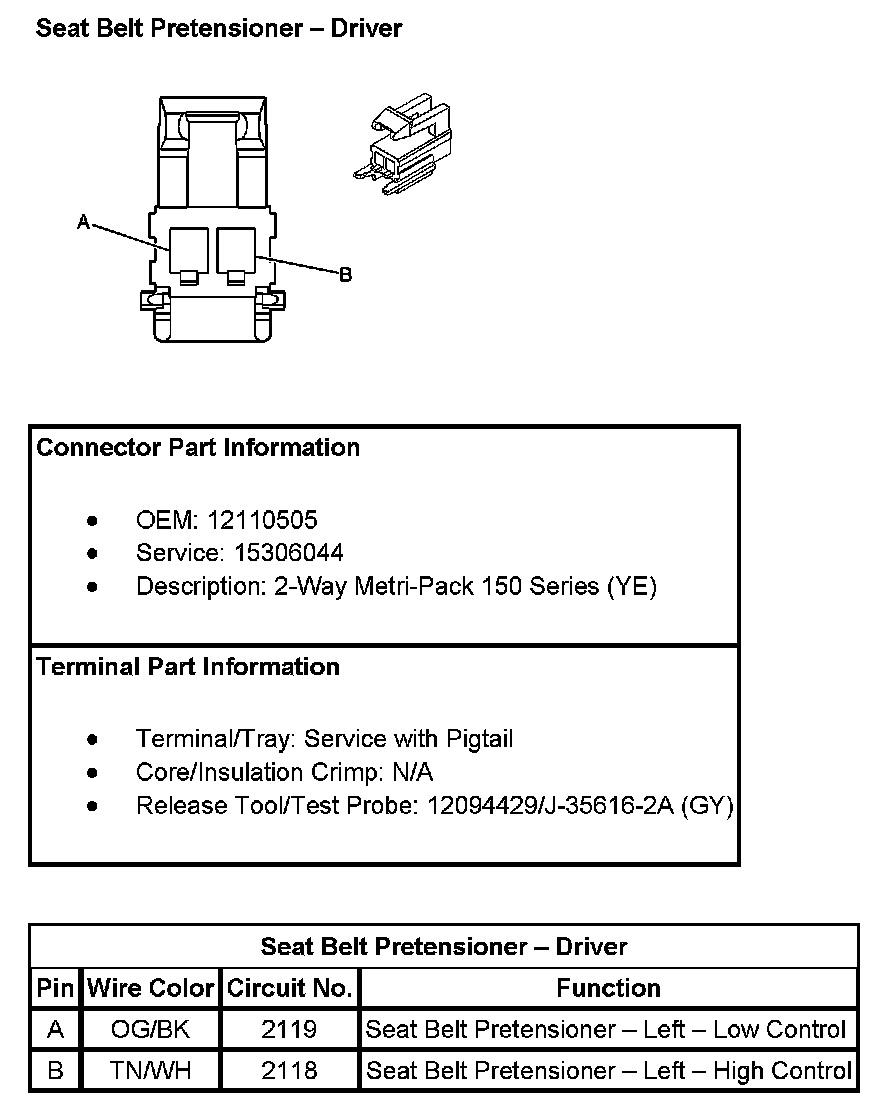

Seat Belt Pretensioner - Driver:

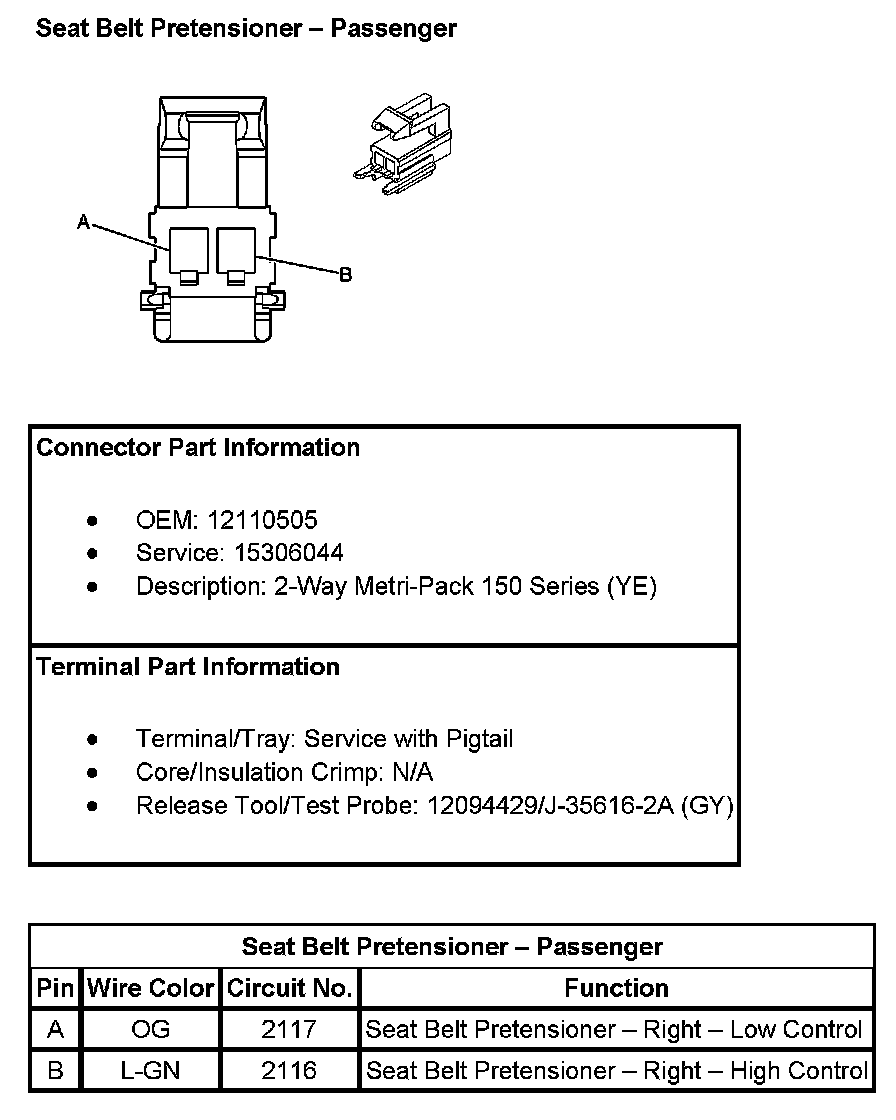

Seat Belt Pretensioner - Passenger:
