Engine Mount Bracket Replacement - Left

Engine Mount Bracket Replacement - Left Side (2500 w/RPO LY6)

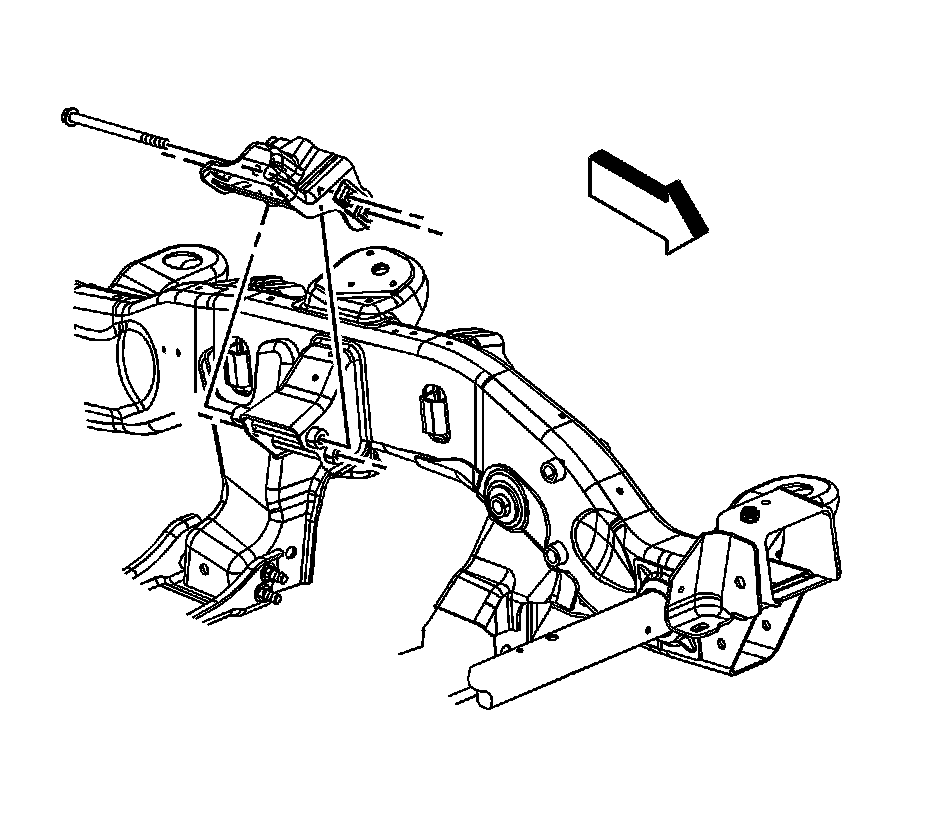

Removal Procedure




1. Remove the engine mount.
2. Remove the engine mount bracket bolts.
3. Remove the engine mount bracket.

Installation Procedure




1. Position the engine mount bracket onto the frame.
2. Perform the following steps prior to installing the engine mount bracket bolts.
^ Remove all traces of the original adhesive patch.
^ Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
^ Apply threadlock GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the bolts.

Notice: Refer to Fastener Notice.

3. Install the engine mount bracket bolts.

Tighten the bolts to 65 N.m (48 lb ft).

4. Install the engine mount.
