Home >> Chevy Truck >> 2007 >> Suburban 2WD V8-6.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Locations >> Ground Views >> G107, G108, G110, G111, and G104

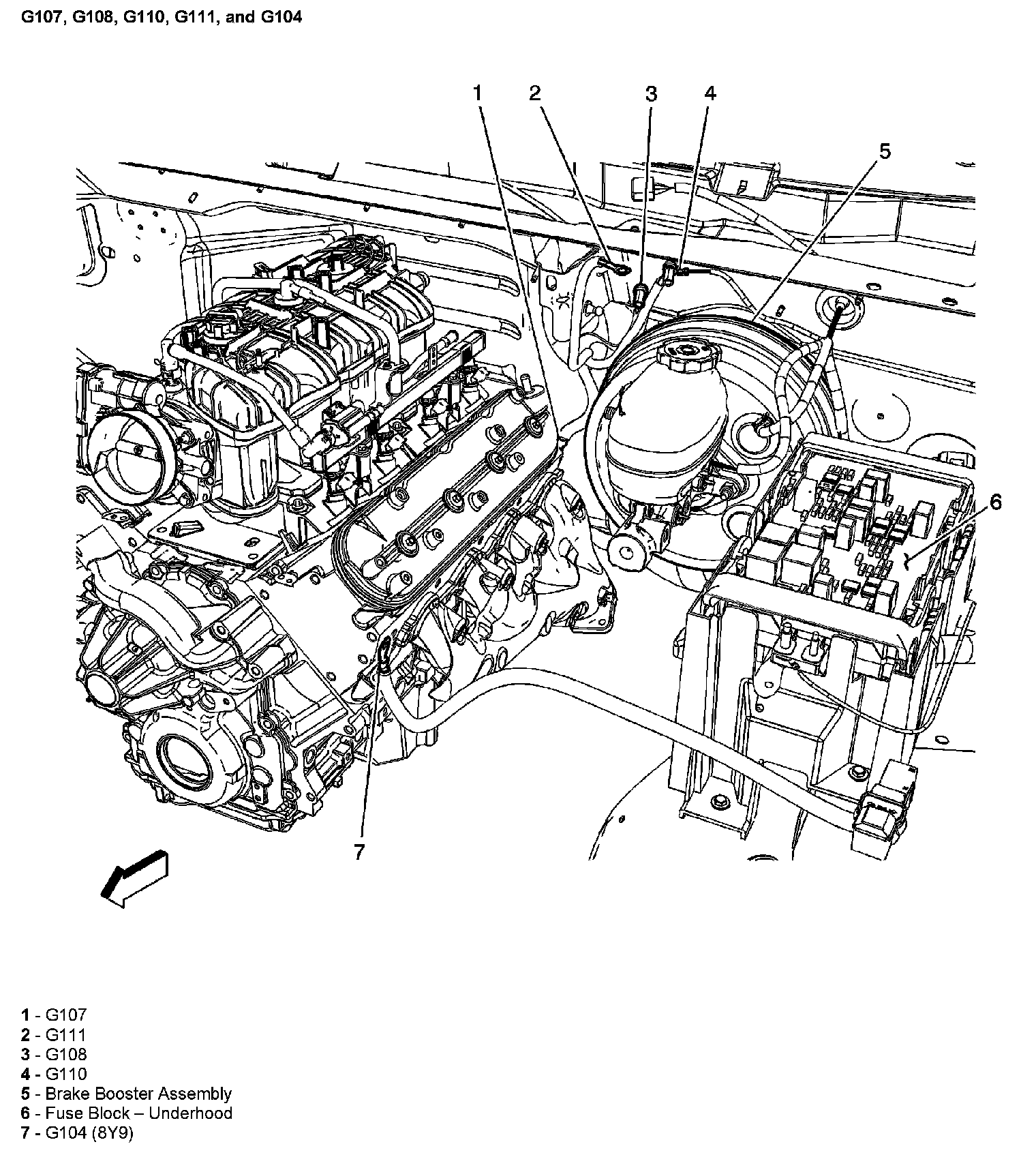

G107, G108, G110, G111, and G104

G107, G108, G110, G111, And G104:
