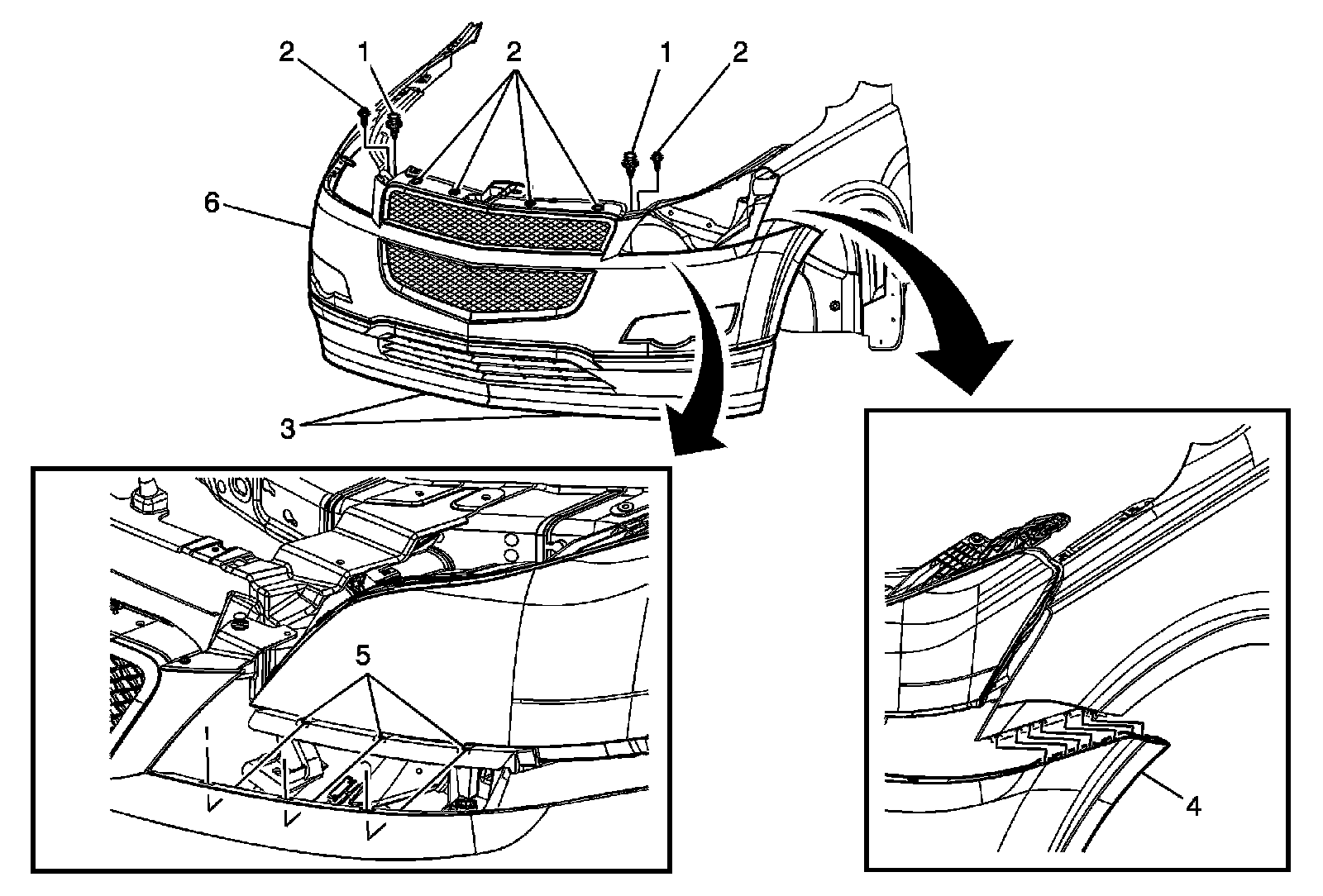

Front Bumper Fascia Replacement (Traverse)

Front Bumper Fascia Replacement (Traverse)

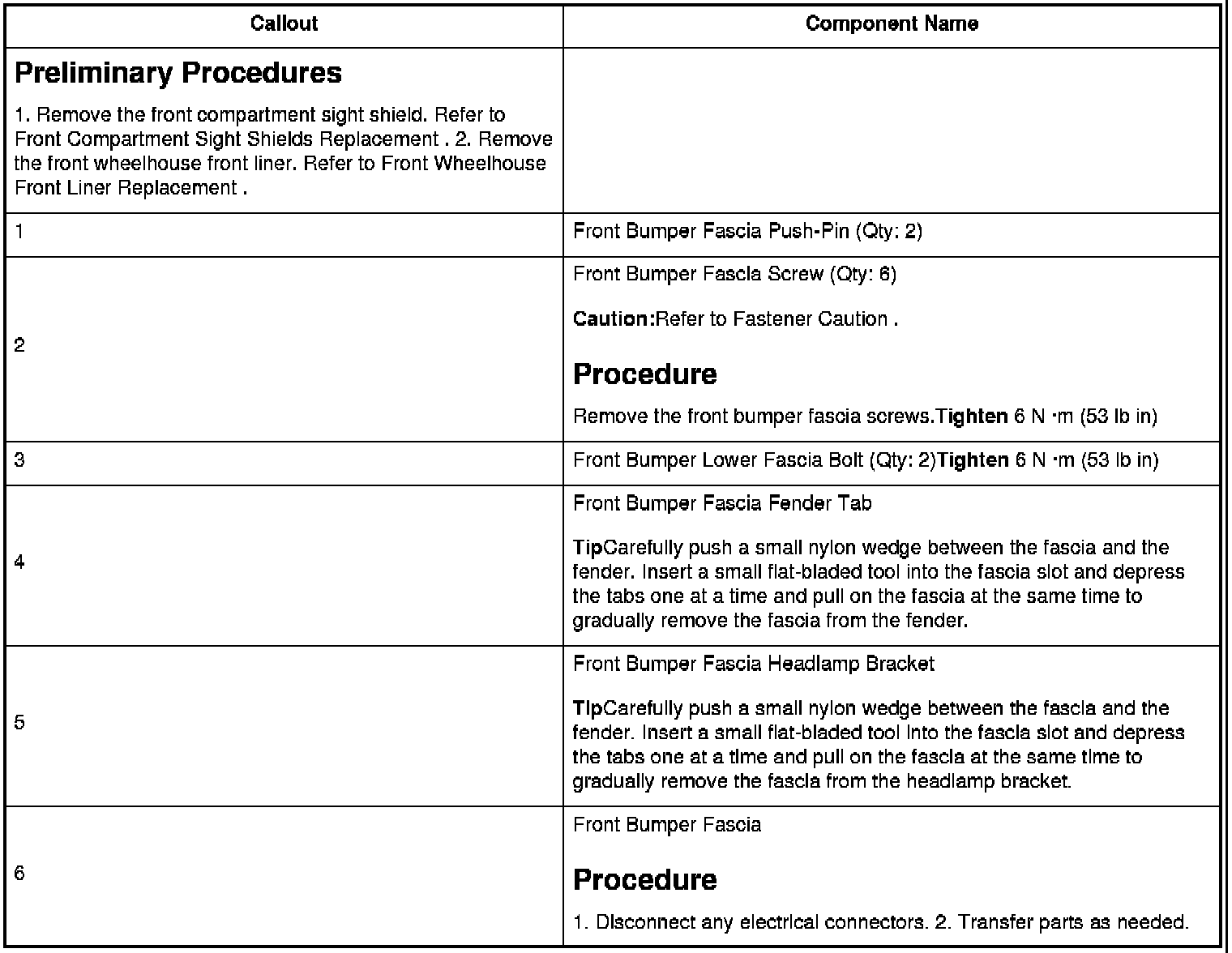

Preliminary Procedures

Caution:Refer to Fastener Caution.

Procedure
TightenTighten
TipCarefully push a small nylon wedge between the fascia and the fender. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the fascia from the fender.

TipCarefully push a small nylon wedge between the fascia and the fender. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the fascia from the headlamp bracket.

Procedure
