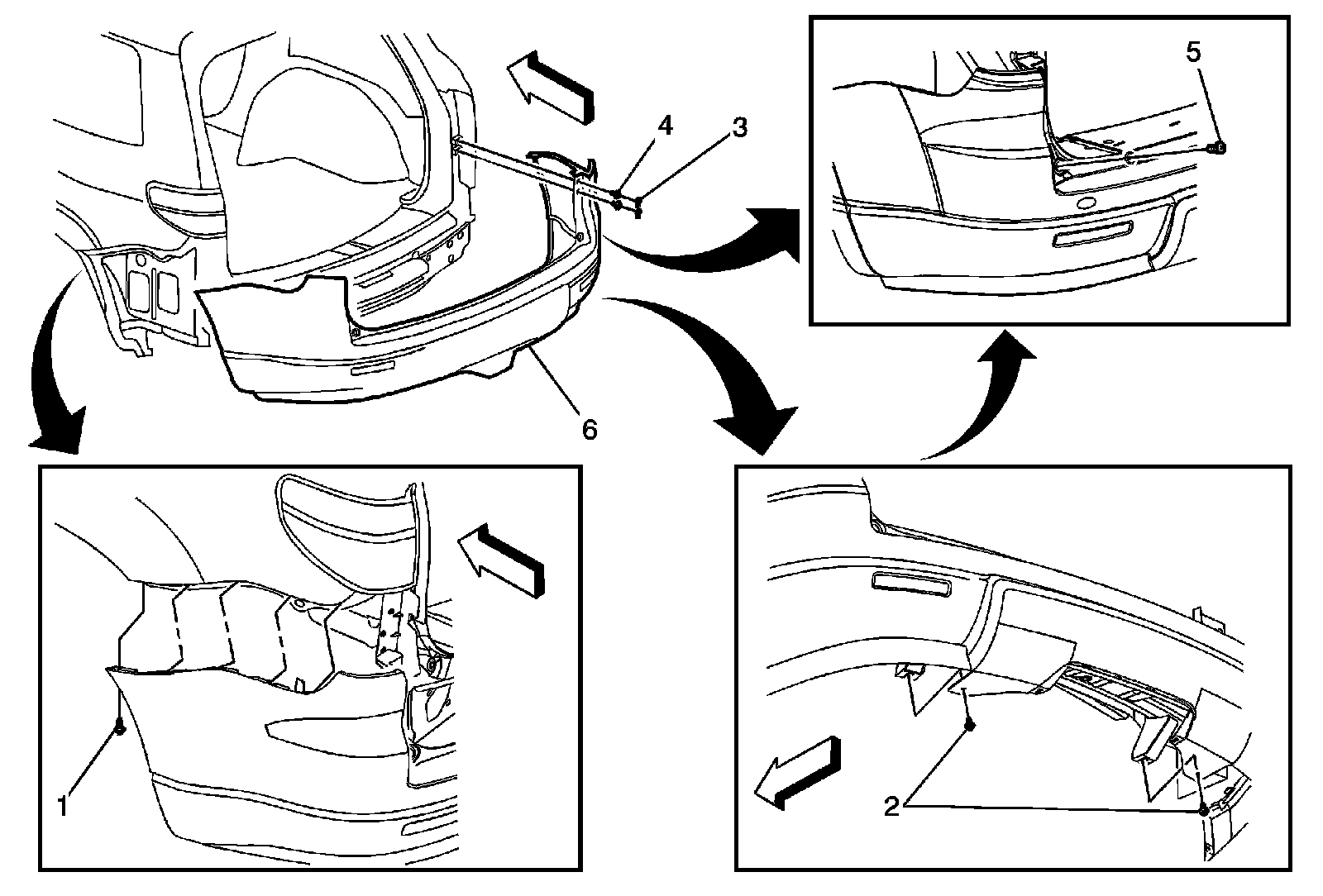

Rear Bumper Fascia Replacement

Rear Bumper Fascia Replacement

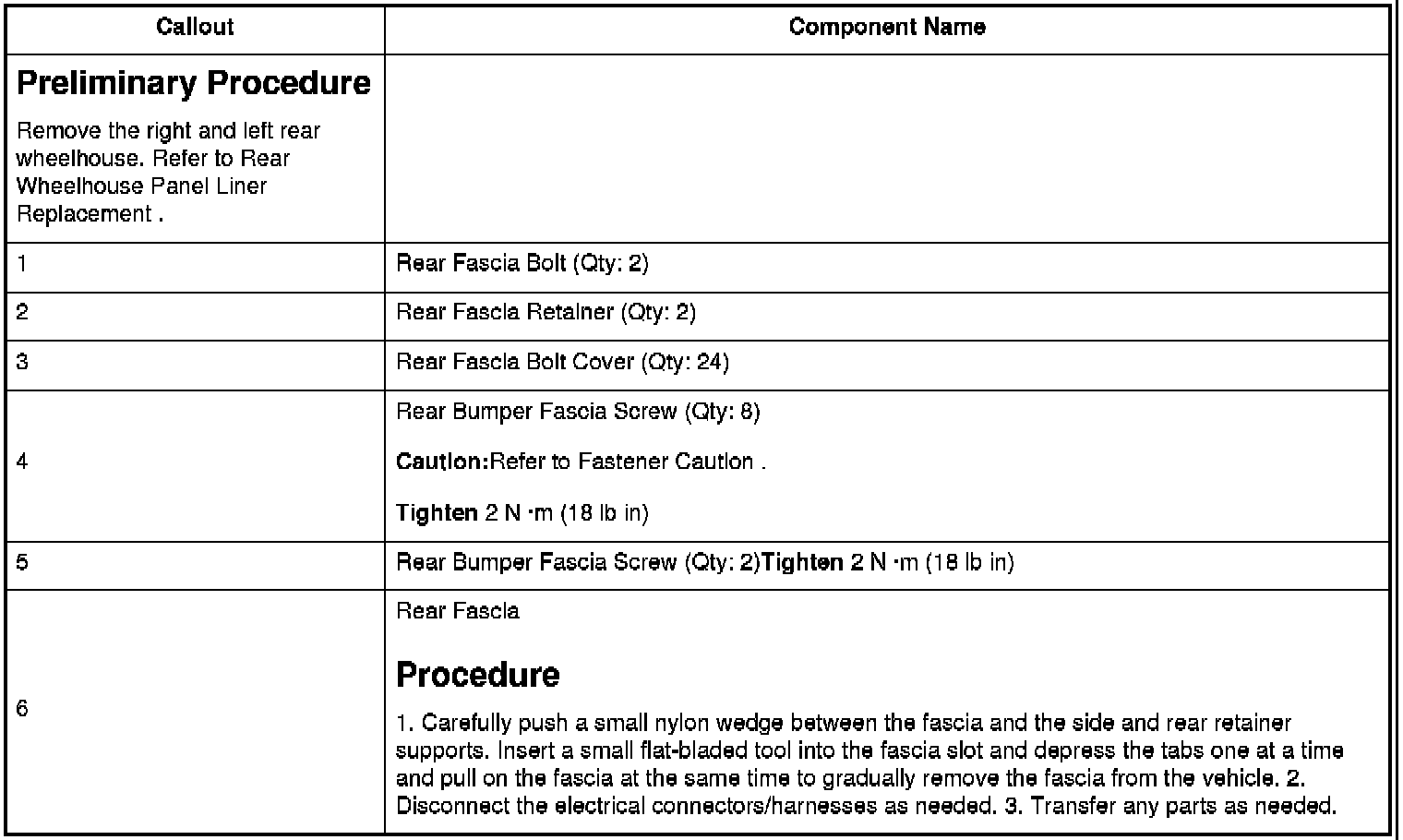

Preliminary Procedure

Caution:Refer to Fastener Caution.
TightenTighten
Procedure
