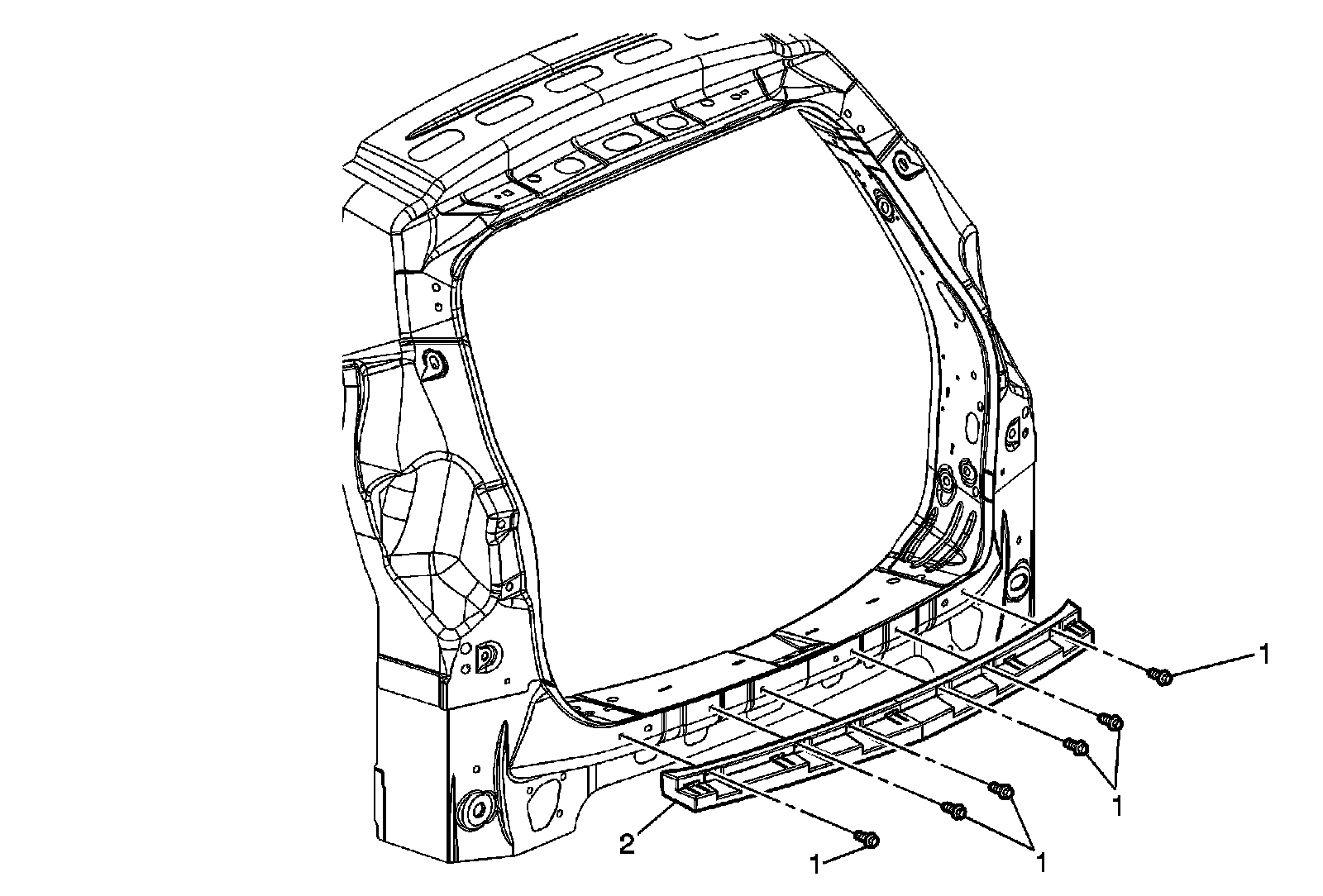

Rear Bumper Fascia Support Replacement


Rear Bumper Fascia Support Replacement

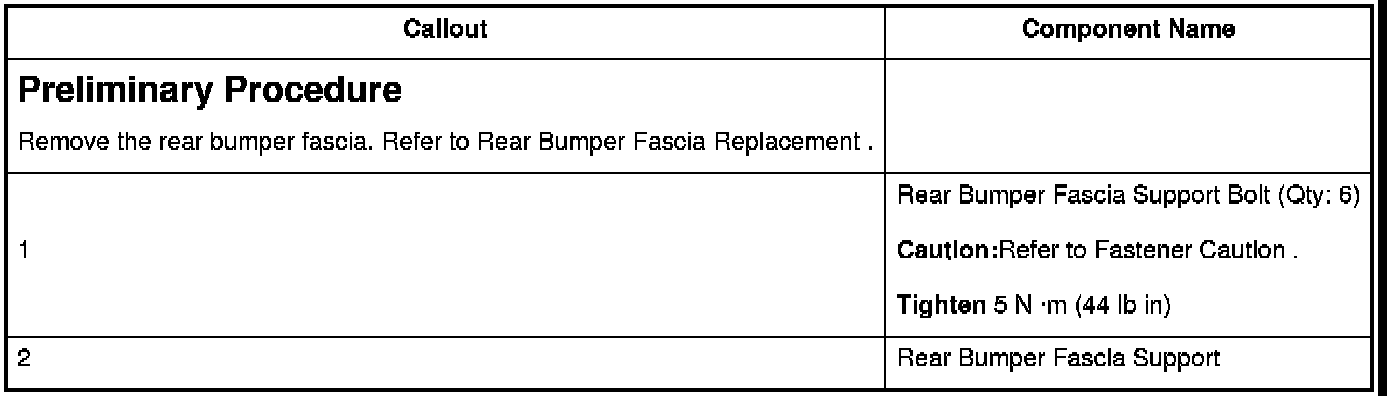

Preliminary Procedure

Caution:Refer to Fastener Caution.
Tighten
