Front Air Deflector Replacement (Outlook)

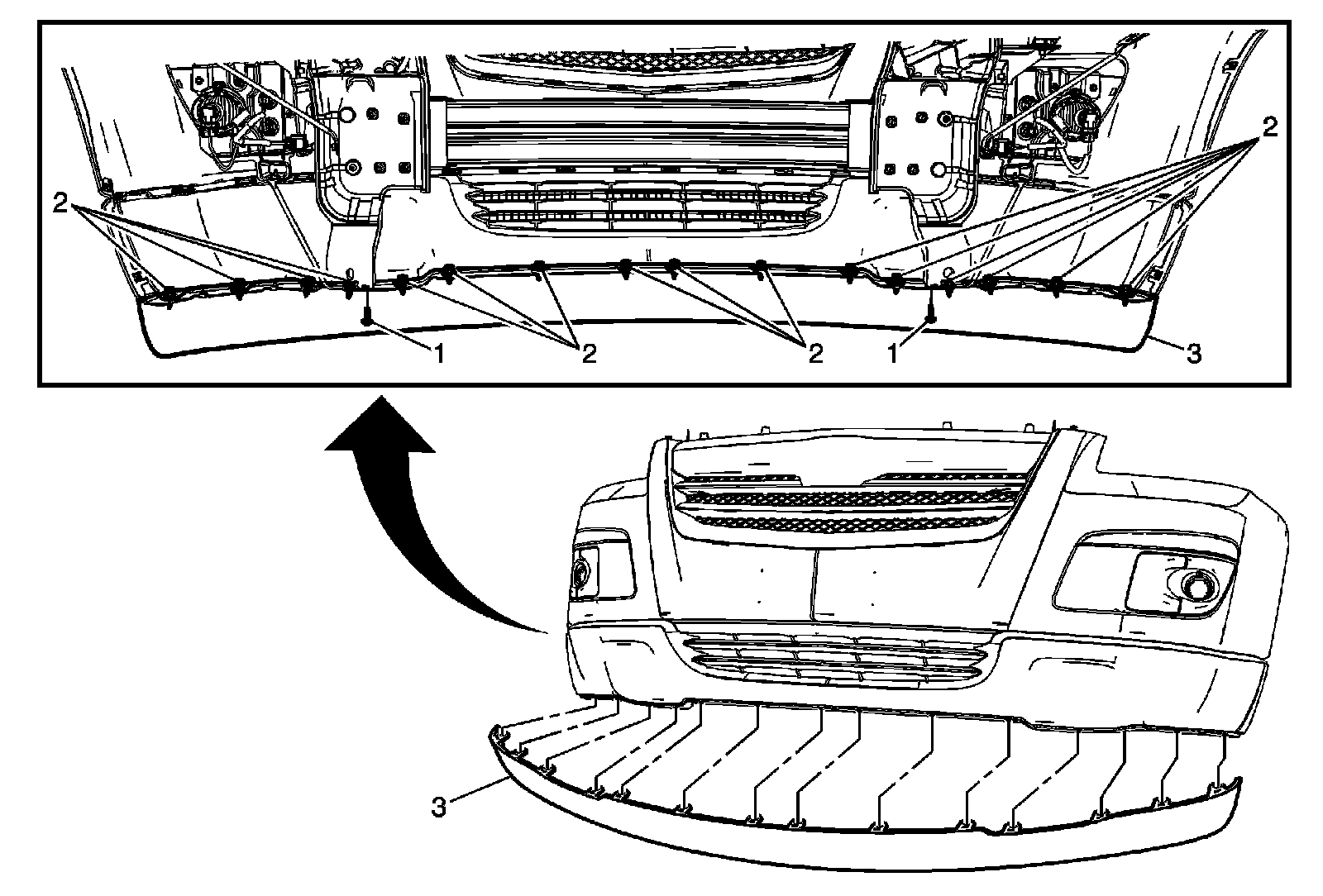

Front Air Deflector Replacement (OUTLOOK)

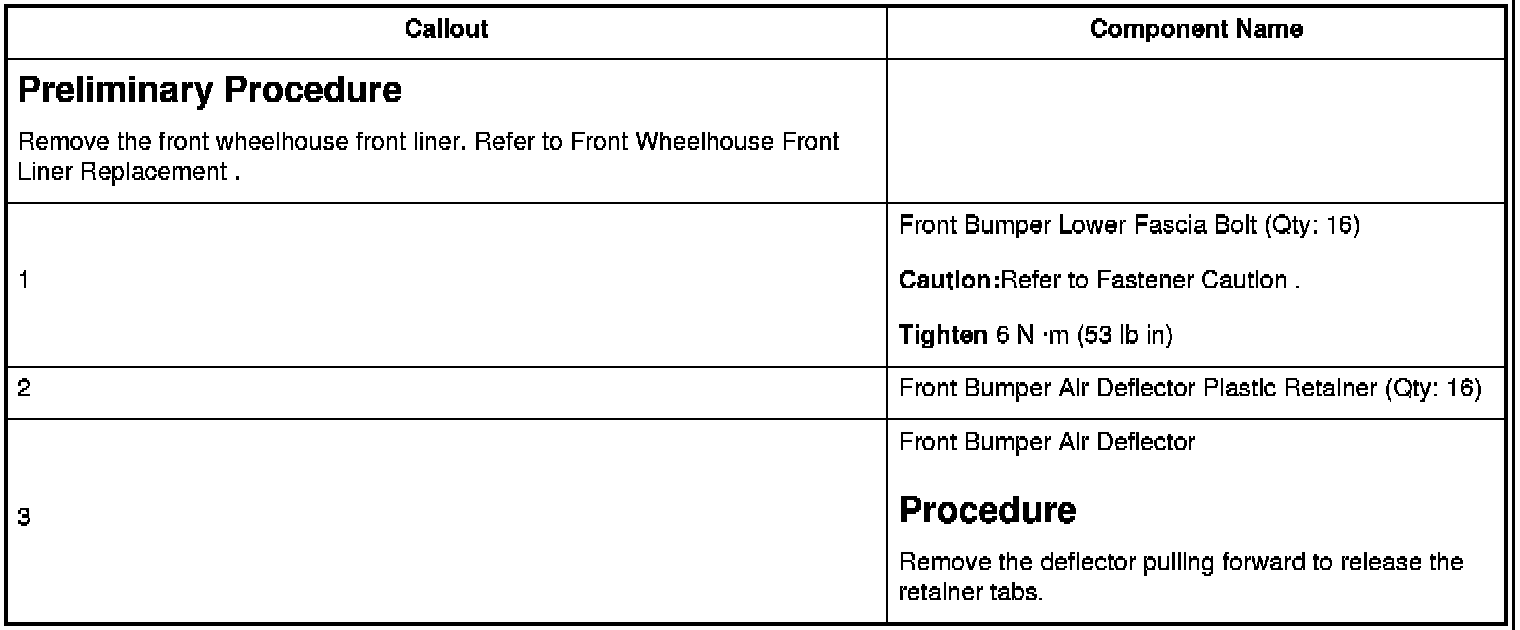

Preliminary Procedure

Caution:Refer to Fastener Caution.
Tighten
Procedure
