Diesel Data
: Automotive Repair
Home
>>
Chevy Truck
>>
2009
>>
Traverse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Hydraulic Brake Booster Pump
Hydraulic Brake Booster Pump

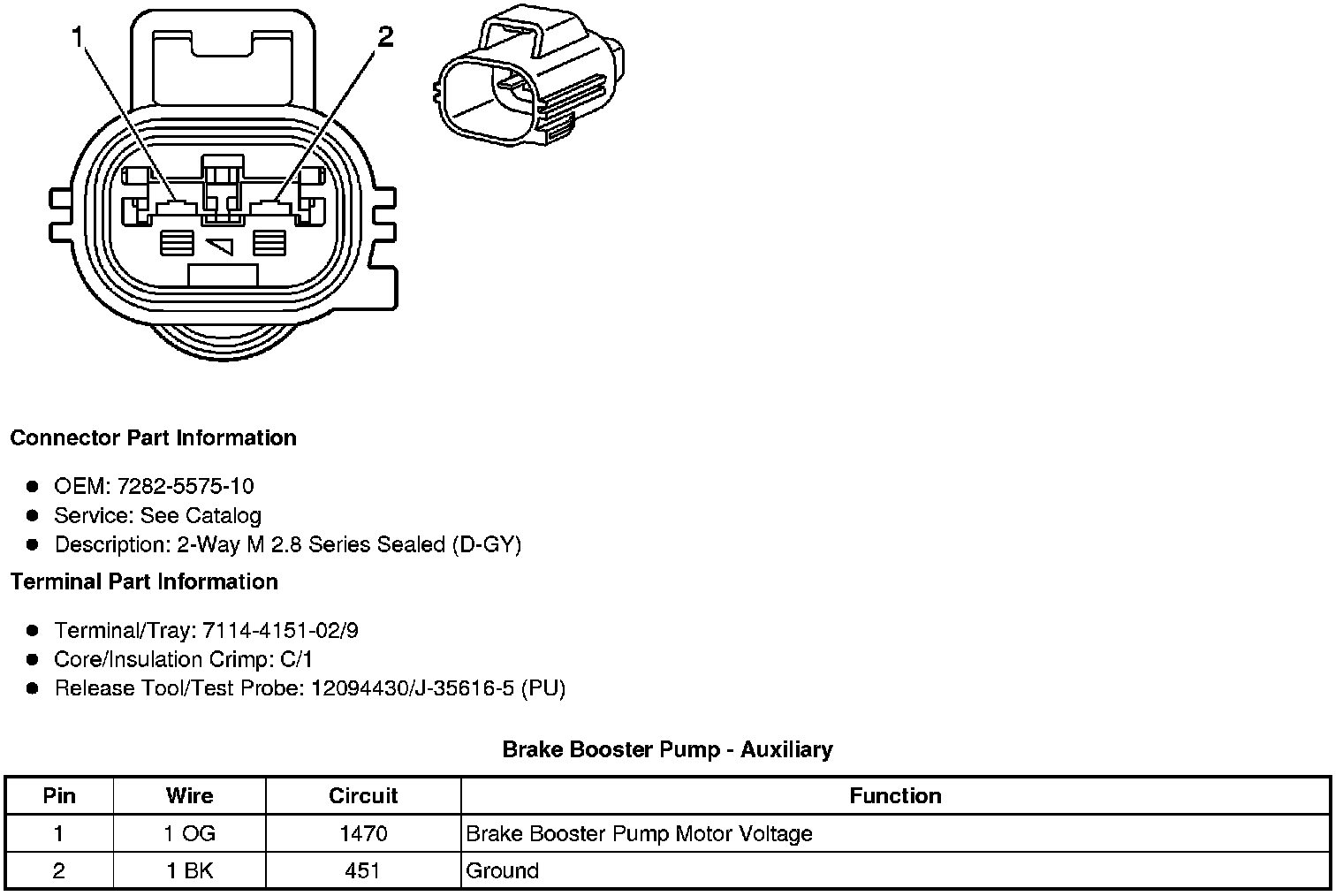

Component Connector End Views
Brake Booster Pump - Auxiliary
