Evaporative Emission (EVAP) Canister Purge Solenoid Valve




Component Connector End Views

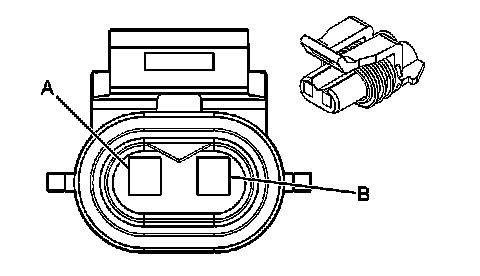

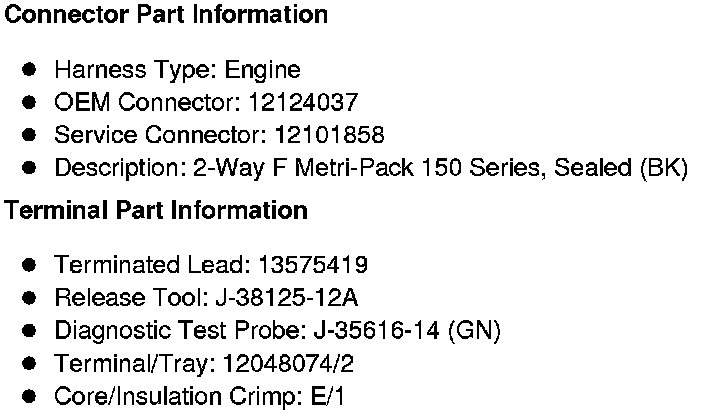

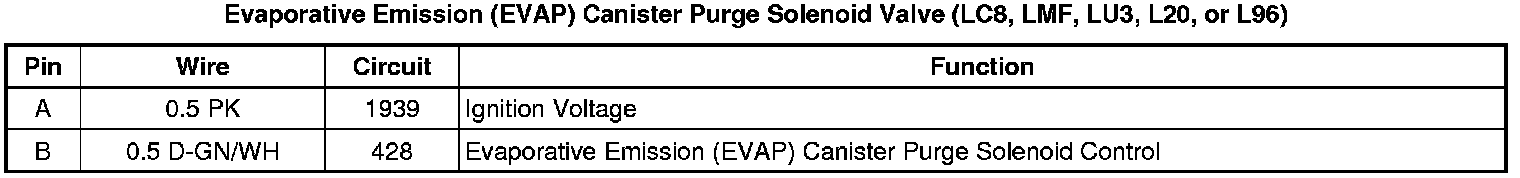

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LC8, LMF, LU3, L20, or L96)
