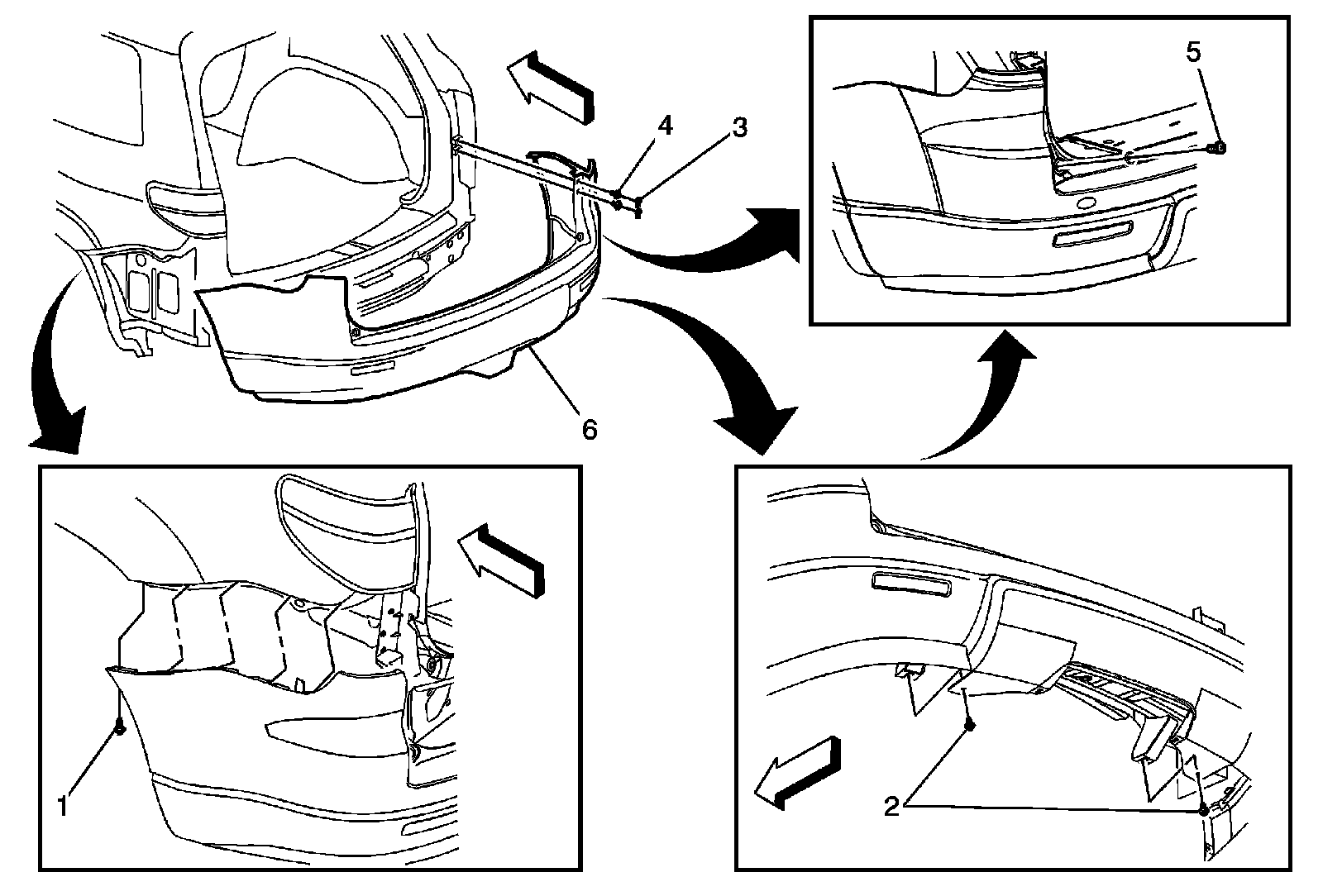

Rear Bumper Fascia Replacement






Rear Bumper Fascia Replacement

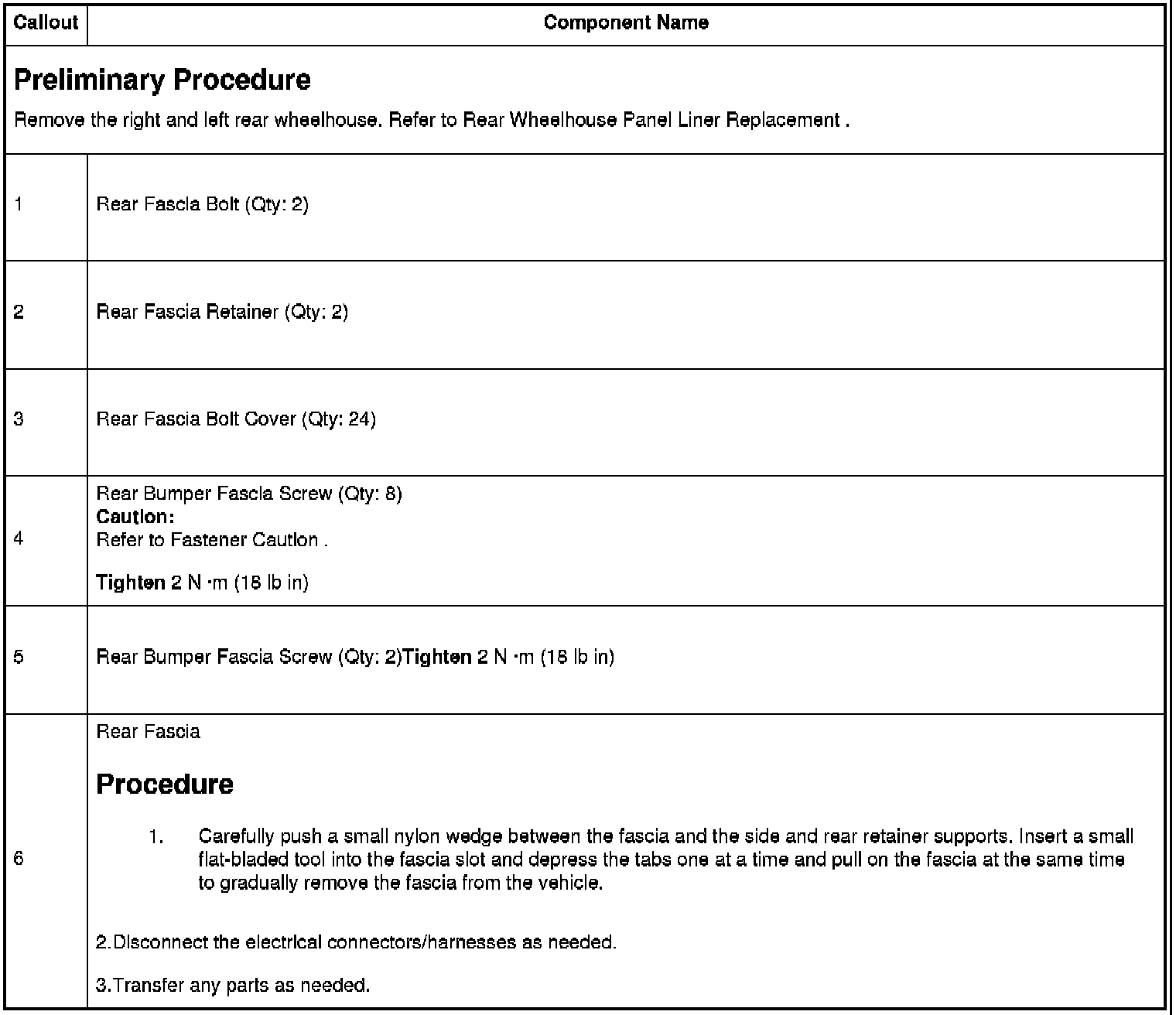

2.Disconnect the electrical connectors/harnesses as needed.

3.Transfer any parts as needed.
