Front Bumper Fascia Replacement (Acadia)

Front Bumper Fascia Replacement (Acadia)

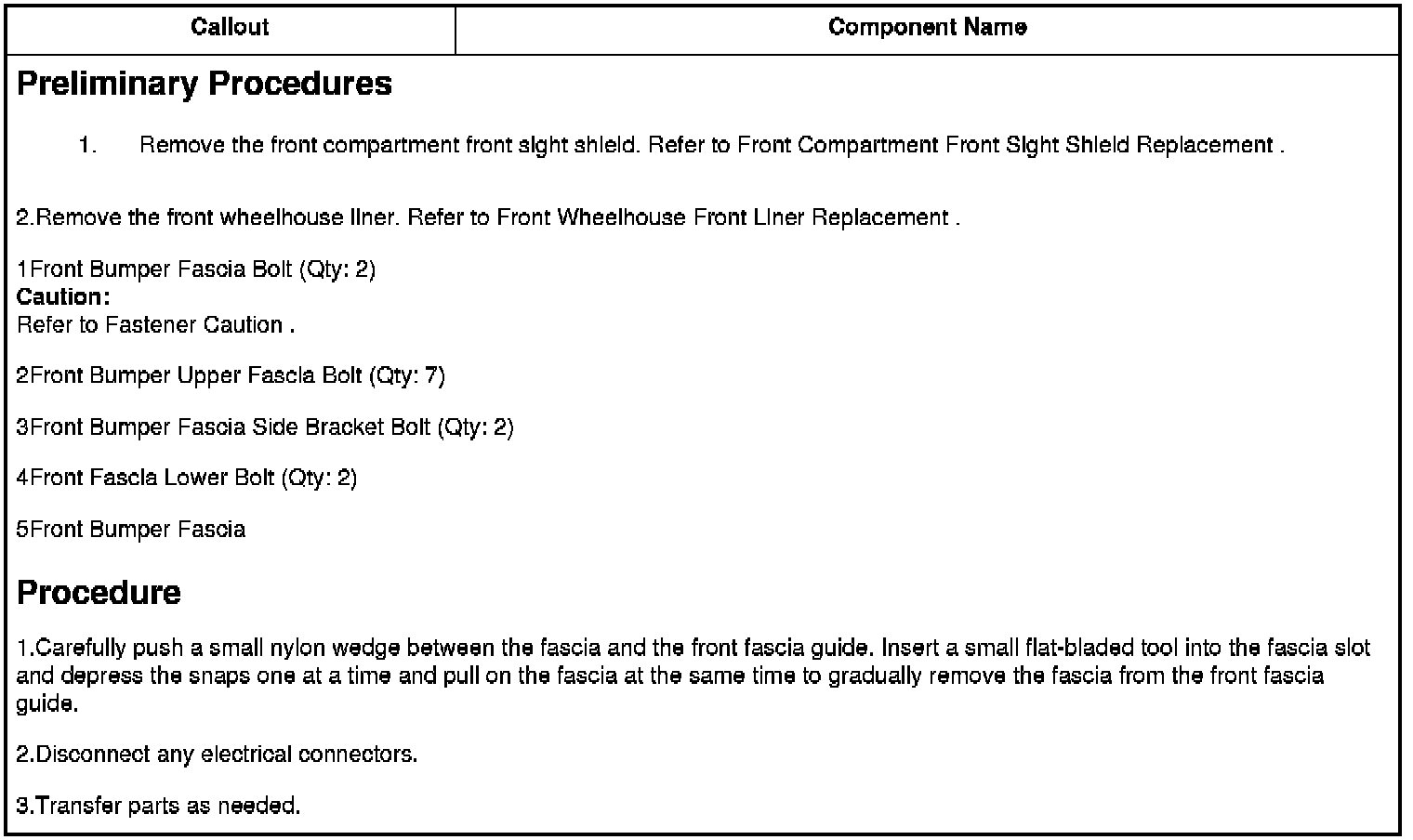

2.Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement .

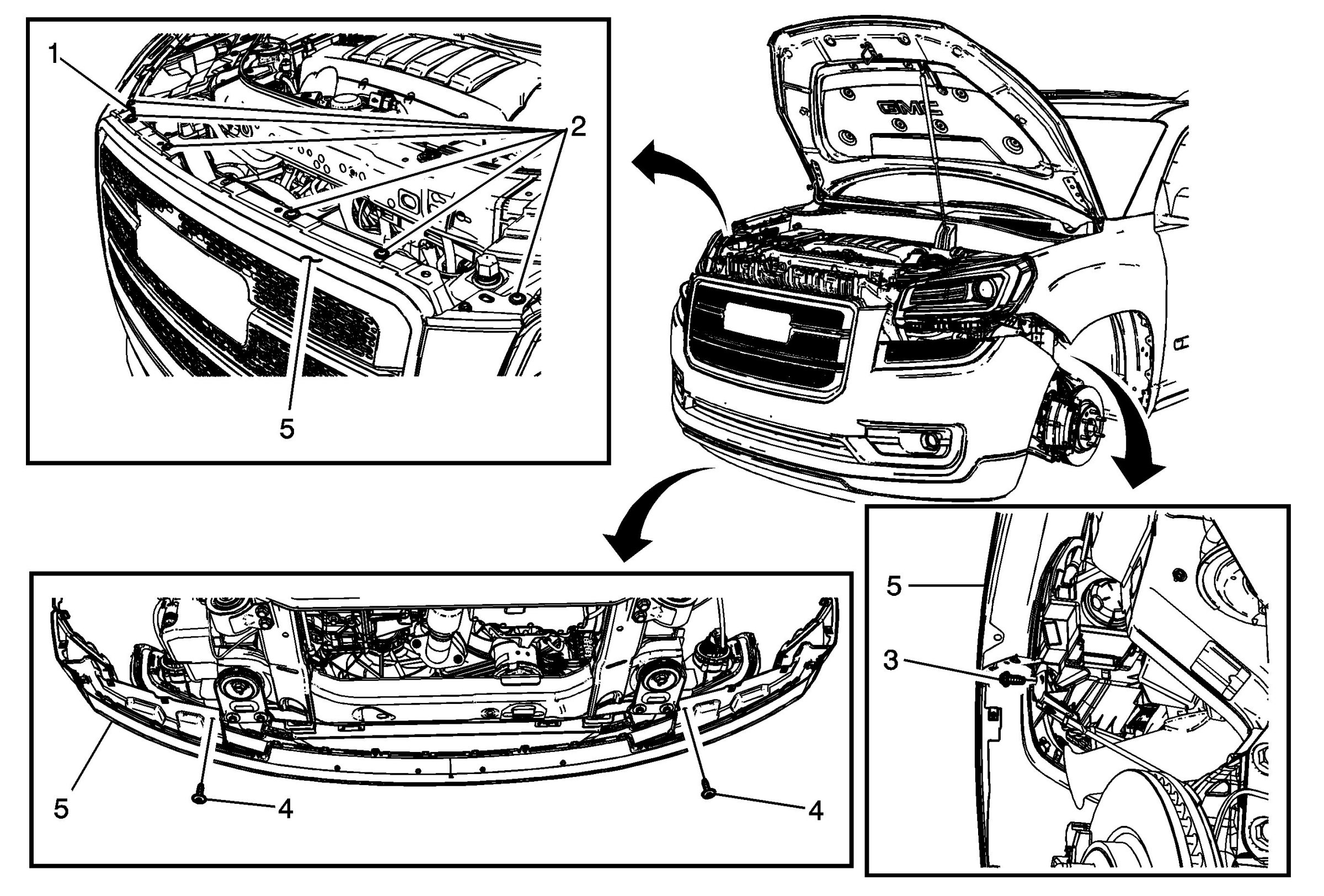

1Front Bumper Fascia Bolt (Qty: 2)
Caution:Refer to Fastener Caution .

2Front Bumper Upper Fascia Bolt (Qty: 7)

3Front Bumper Fascia Side Bracket Bolt (Qty: 2)

4Front Fascia Lower Bolt (Qty: 2)

5Front Bumper Fascia

Procedure

1.Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide.

2.Disconnect any electrical connectors.

3.Transfer parts as needed.
