With Fuel Injection

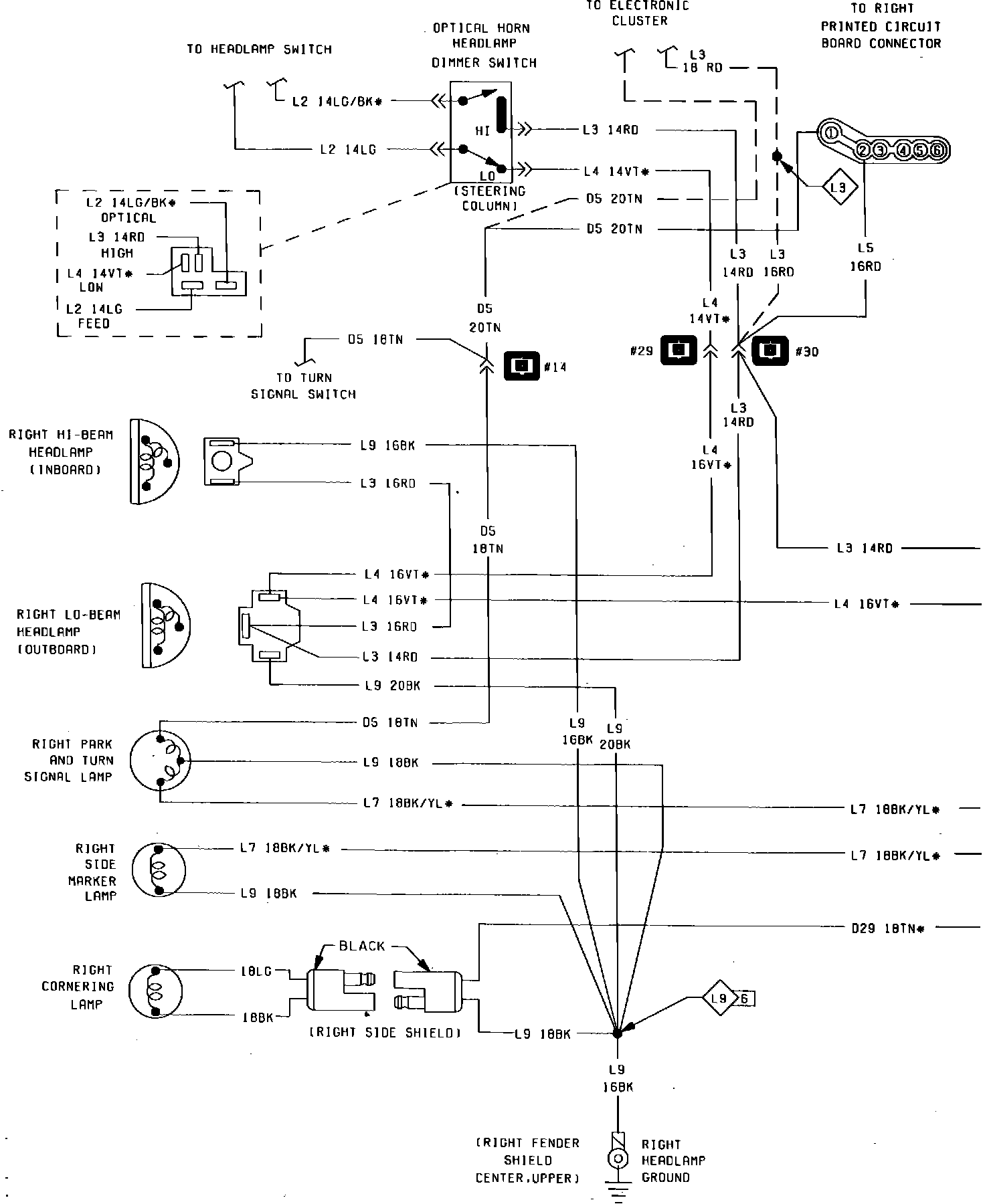

Fig. 59 Front End Wiring (Part 1 of 2). 1984 4-135/2.2L W/Fuel Injection:

Fig. 59 Front End Wiring (Part 2 of 2). 1984 4-135/2.2L W/Fuel Injection:
