Operation of Warning System

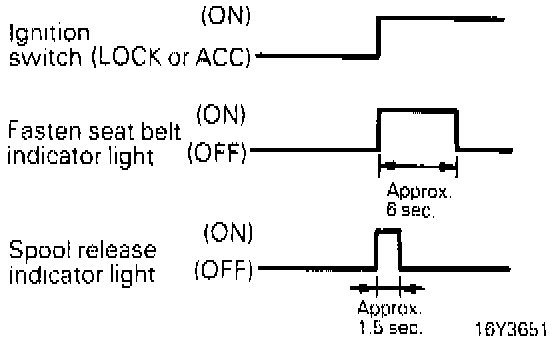

IGNITION SWITCH INITIAL WARNING
When the ignition switch is turned from LOCK or ACC to ON, the "fasten seat belt" indicator light lights up and stays lit for approximately 6 seconds and spool release indicator light lights up and stays lit for approximately 1.5 seconds. The lights go off if the ignition switch is turned LOCK or ACC during the predetermined period of time.

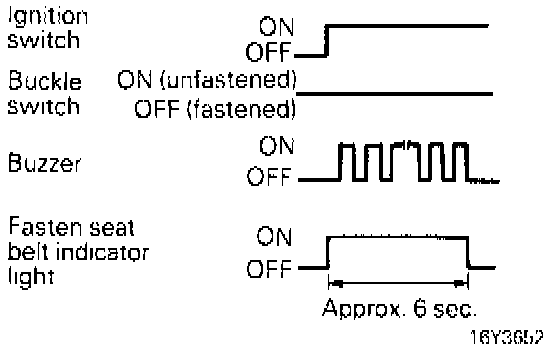

DRIVER'S SEAT LAP BELT WARNING
If the lap belt on the driver's seat is not buckled when the ignition switch is turned ON from the LOCK or ACC position, buzzer is activated for approximately 6 seconds. The "fasten seat belt" indicator light, at the same time, lights up and stays lit for the same period of time.

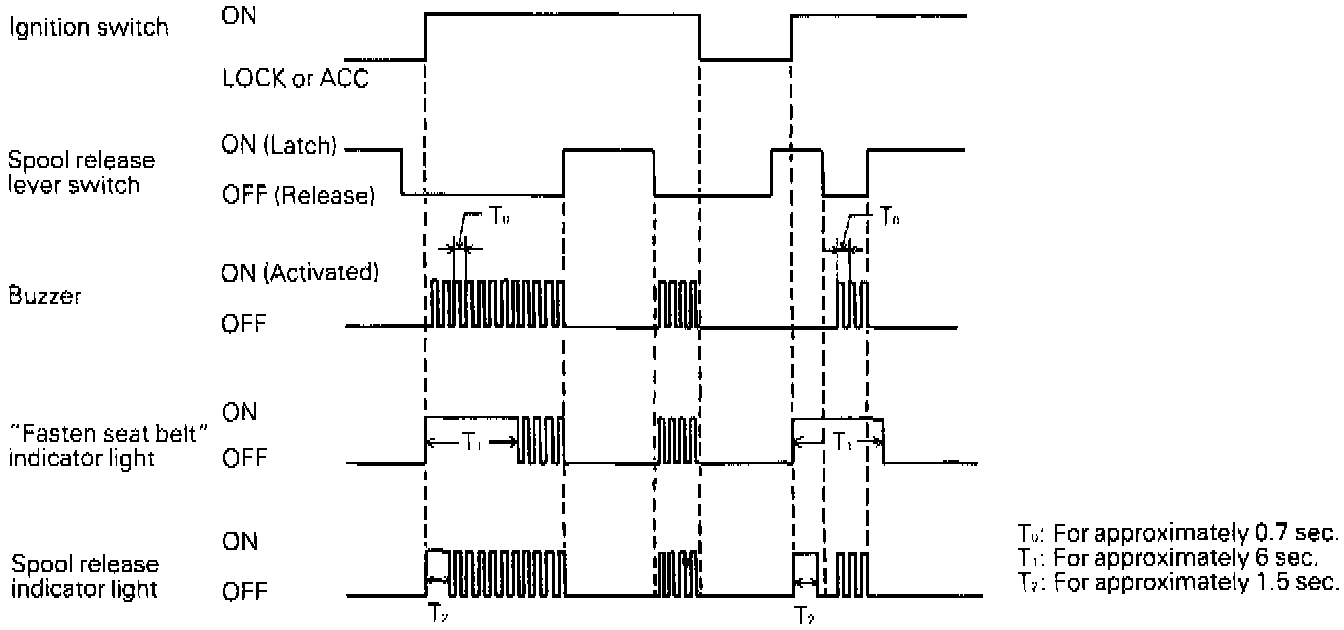

AUTOMATIC SEAT BELT LATCH RELEASE WARNING
When the ignition switch is turned ON with the spool release lever pulled (spool release lever switch in OFF position), intermittent buzzer sounds.

When the ignition switch is turned ON from the LOCK or ACC position, the "fasten seat belt" indicator light lights up and stays lit for approximately 6 seconds, then starts blinking. The spool release indicator light lights up and stays lit for approximately 1.5 seconds, then starts blinking.

If the spool release lever is pulled with a lapse of approximately 6 seconds after the ignition switch has been turned ON, buzzer sounds intermittently.

At the same time, the "fasten seat belt" indicator light and the spool release indicator light blink intermittently.

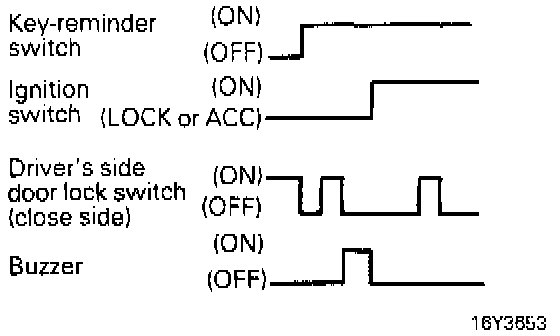

KEY REMINDER
When the door lock switch on the driver's side door is turned LOCK or ACC from ON position (close open), the buzzer will sound without interruption in case the steering lock switch is ON (key inserted in key cylinder) and the ignition switch is in LOCK or ACC position.
