Front Seat Belts

PRE-REMOVAL OPERATION
^ Headlining
^ Front Pillar Trim
^ Roof Side Trim
^ Upper Quarter Trim
^ Wrap Round Trim
^ Quarter Trim
^ Scuff Plate

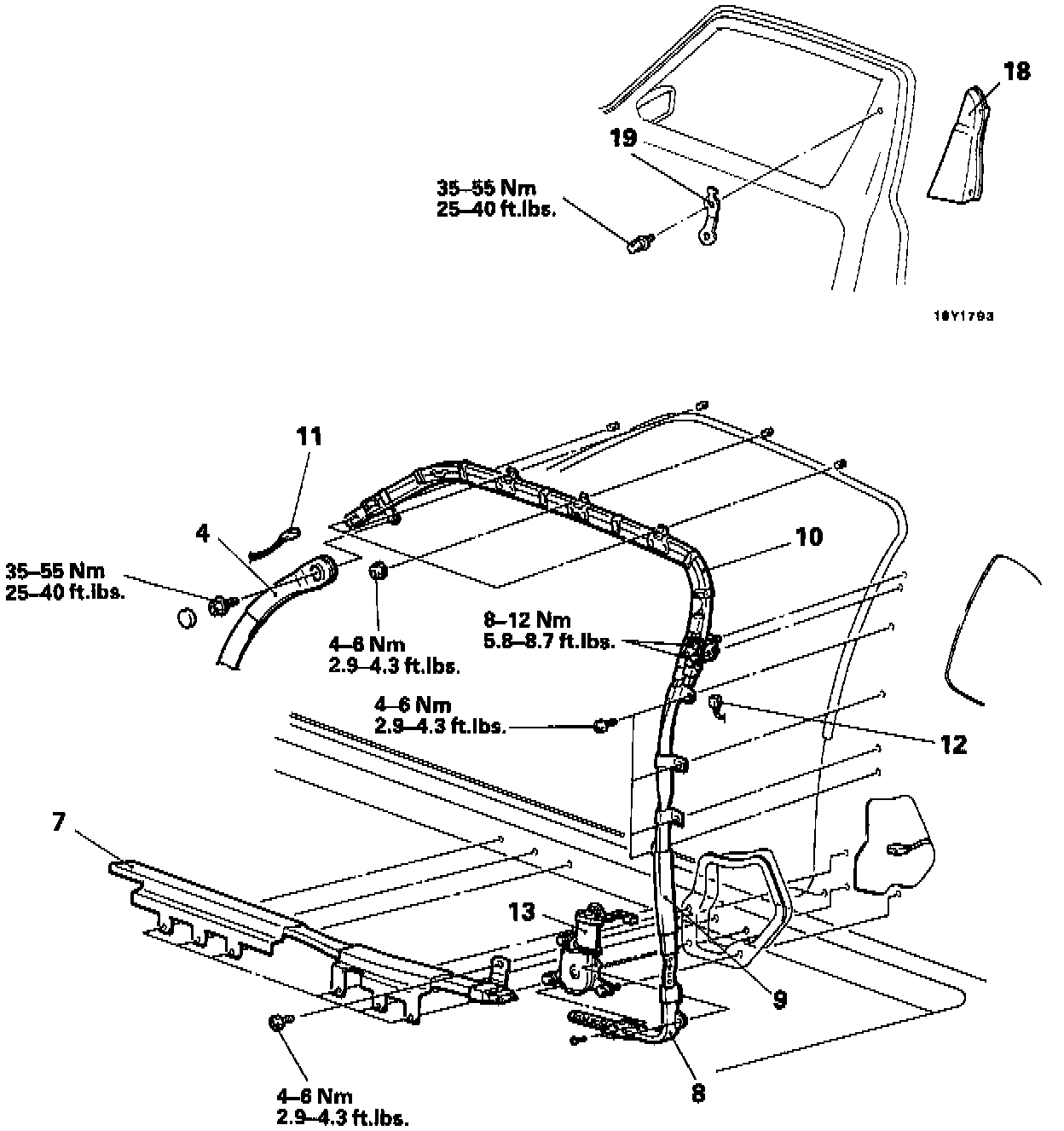

DRIVING DEVICE ASSEMBLY REMOVAL STEPS
1. Buckle
2. Front seat
3. Buckle switch connector connection (driver's side only)
4. Anchor plate connection
5. Retractor (for lap belt)
6. Driving device assembly (Parts 7 through 10)
7. Outer casing (B)
8. Tape guide
9. Outer casing (A)
10. Rail guide
11. Release switch connector connection
12. Fasten switch connector connection
13. Motor

POST-INSTALLATION OPERATION
^ Headlining
^ Front Pillar Trim
^ Roof Side Trim
^ Upper Quarter Trim
^ Wrap Round Trim
^ Quarter Trim
^ Scuff Plate

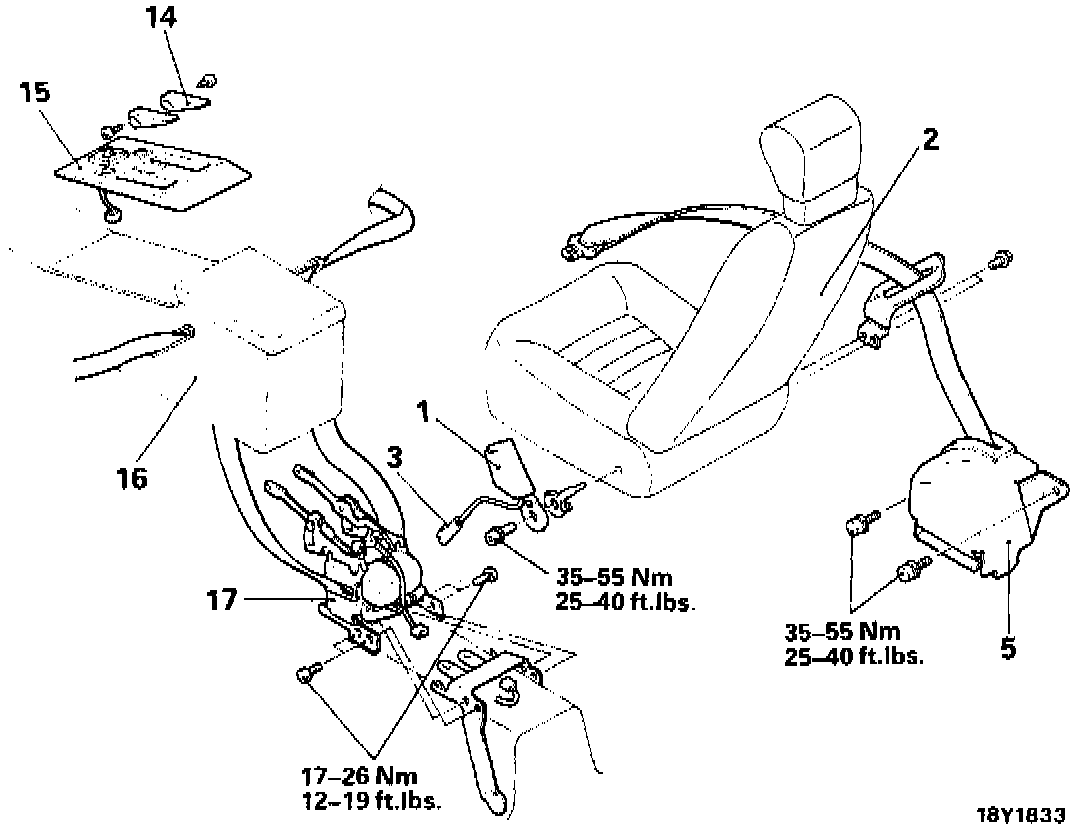

SHOULDER BELT REMOVAL STEPS
4. Anchor plate connection
14. Spool release lever
15. Rear console cover
16. Rear console box
17. Retractor (for shoulder bell)

SHOULDER SUB ANCHOR REMOVAL STEPS
15. Door sash trim
19. Shoulder sub anchor

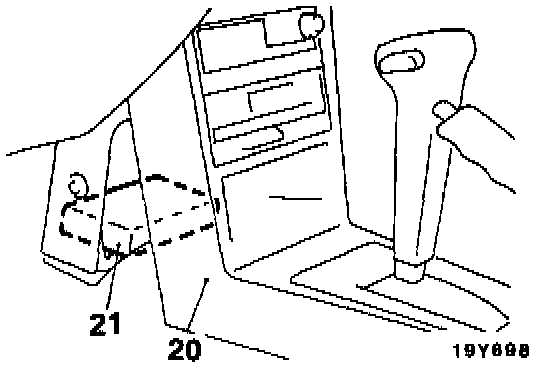

AUTOMATIC SEAT BELT CONTROL UNIT REMOVAL STEPS
20. Floor console
21. Automatic seat belt control unit

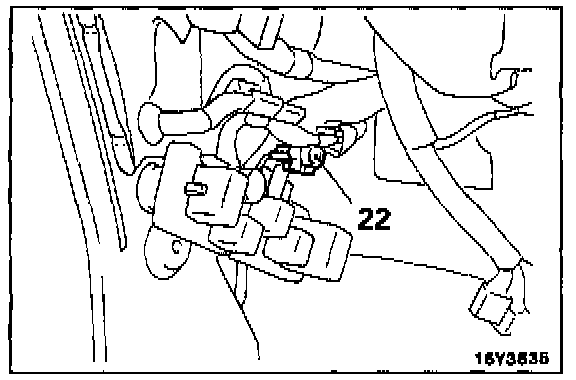

CIRCUIT BREAKER REMOVAL
22. Circuit breaker

SERVICE POINTS OF REMOVAL

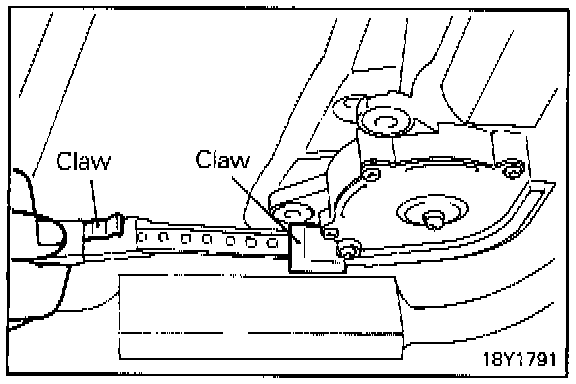

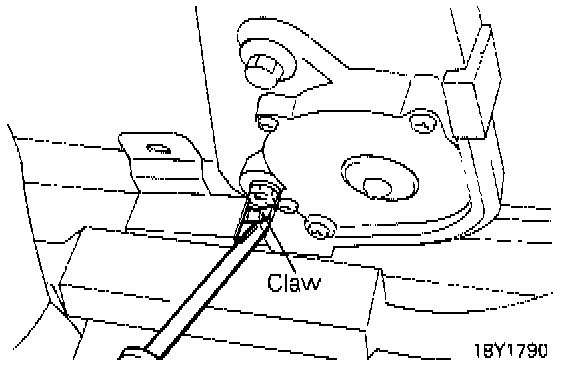

7. removal Of Outer Casing (B)
Raise the claw of the outer casing (B) and disconnect the outer casing (A) from the tape guide. Then, with the tape pulled a\\ the way out, remove the outer casing (B).

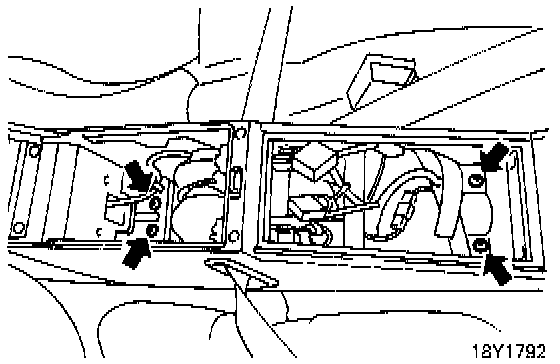

16. Removal Of Rear Console Box
Remove the inner box cover and remove the rear console box attaching screws shown. Then, remove the rear console box.


SERVICE POINTS OF INSTALLATION

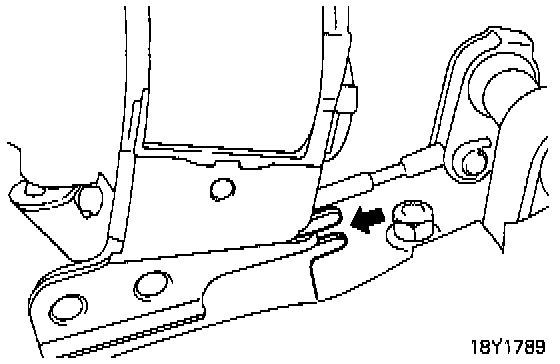

17. Installation Of Retractor (for Shoulder Belt)
When installing. the retractor. make sure that the retractor locking tab fits into bracket hook as illustrated.

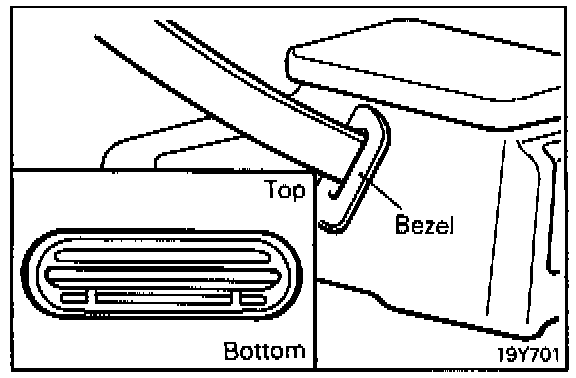

16. Installation Of Rear Console Box
When passing the shoulder belt out through the bezel of console box after the rear console box has been installed, ensure that the bezel is positioned with correct top-to-bottom orientation and the belt is not twisted inside the console box.

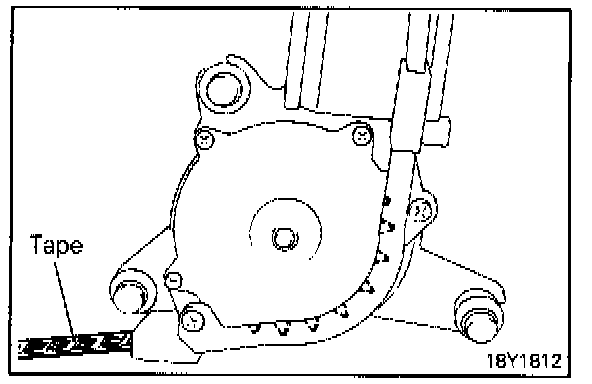

8. Installation Of Tape Guide
1. Pass the tape into the tape guide.
2. Mesh the hole in tape with the motor gear with proper tension. Then. mount the tape guide to the motor.





7. Installation Of Outer Casing (B)
After the tape has been passed into the outer casing (B). insert until the outer casing (B) claw catches the tape guide claw.
