Sebring Convertible L4-2.4L DOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>

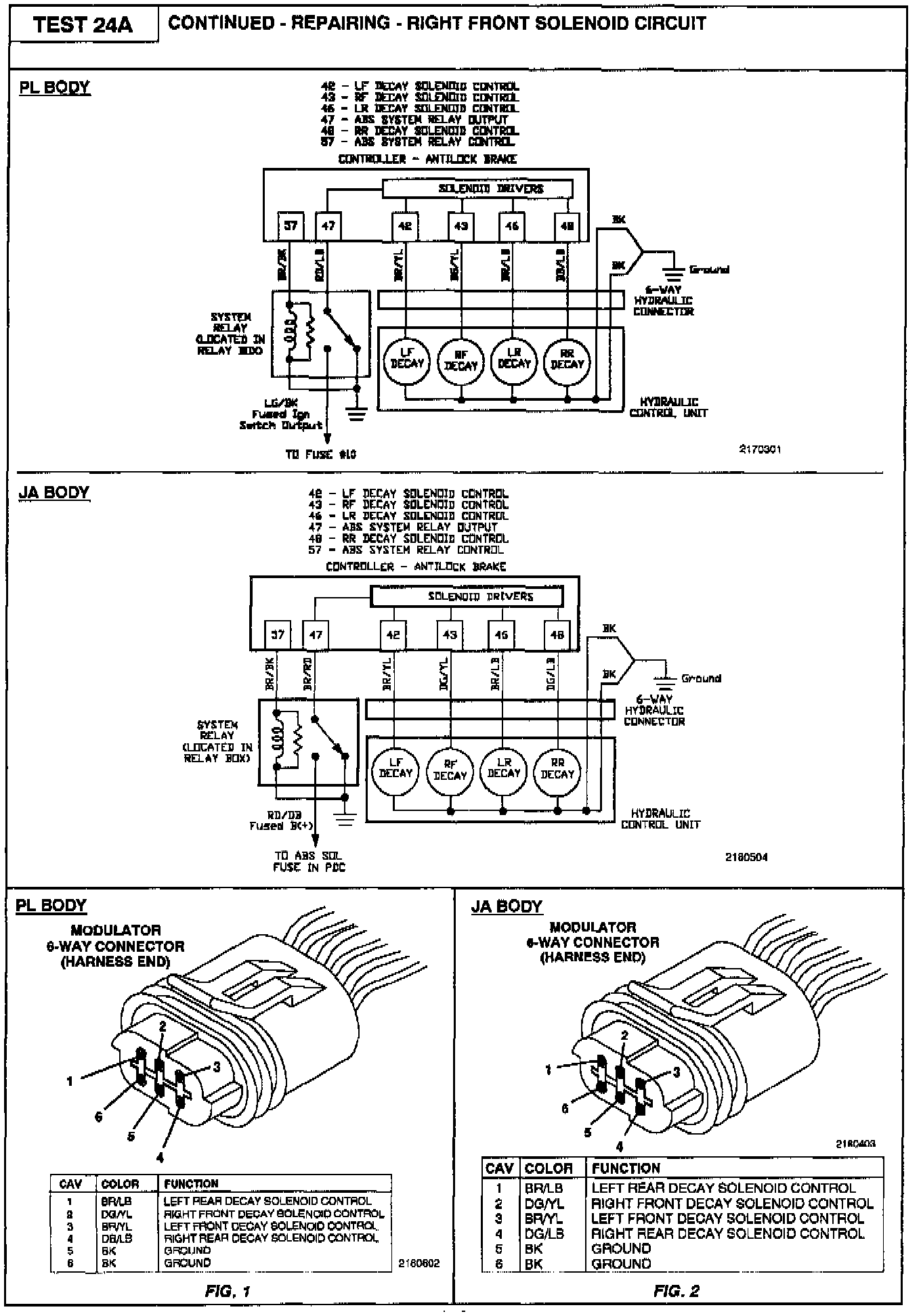

Test 24A - Right Front Solenoid Circuit
Test 24A - Right Front Solenoid Circuit
Related Images:
Diagnostic Chart:
Related Images:
Diagnostic Chart:
Related Images:
Diagnostic Chart:
