Rear Speaker

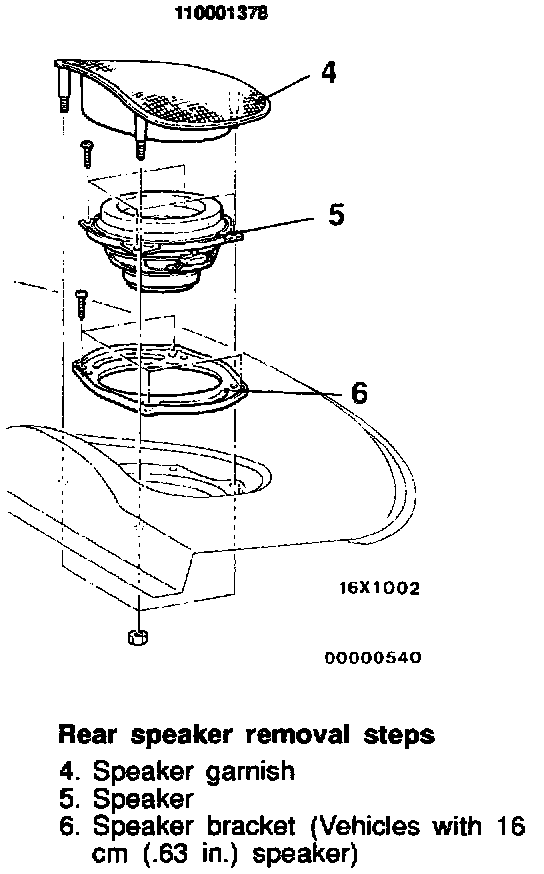

Rear Speaker - Removal And Installation:





REMOVE
1. Speaker garnish
2. Speaker
3. Speaker bracket (Vehicles with 16 cm (0.63 in) speaker)

INSTALL
1. Speaker bracket (Vehicles with 16 cm (0.63 in) speaker)
2. Speaker
3. Speaker garnish
