Home >> Chrysler >> 1996 >> Sebring L4-2.0L DOHC >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Locations

Antilock Brakes / Traction Control Systems: Locations

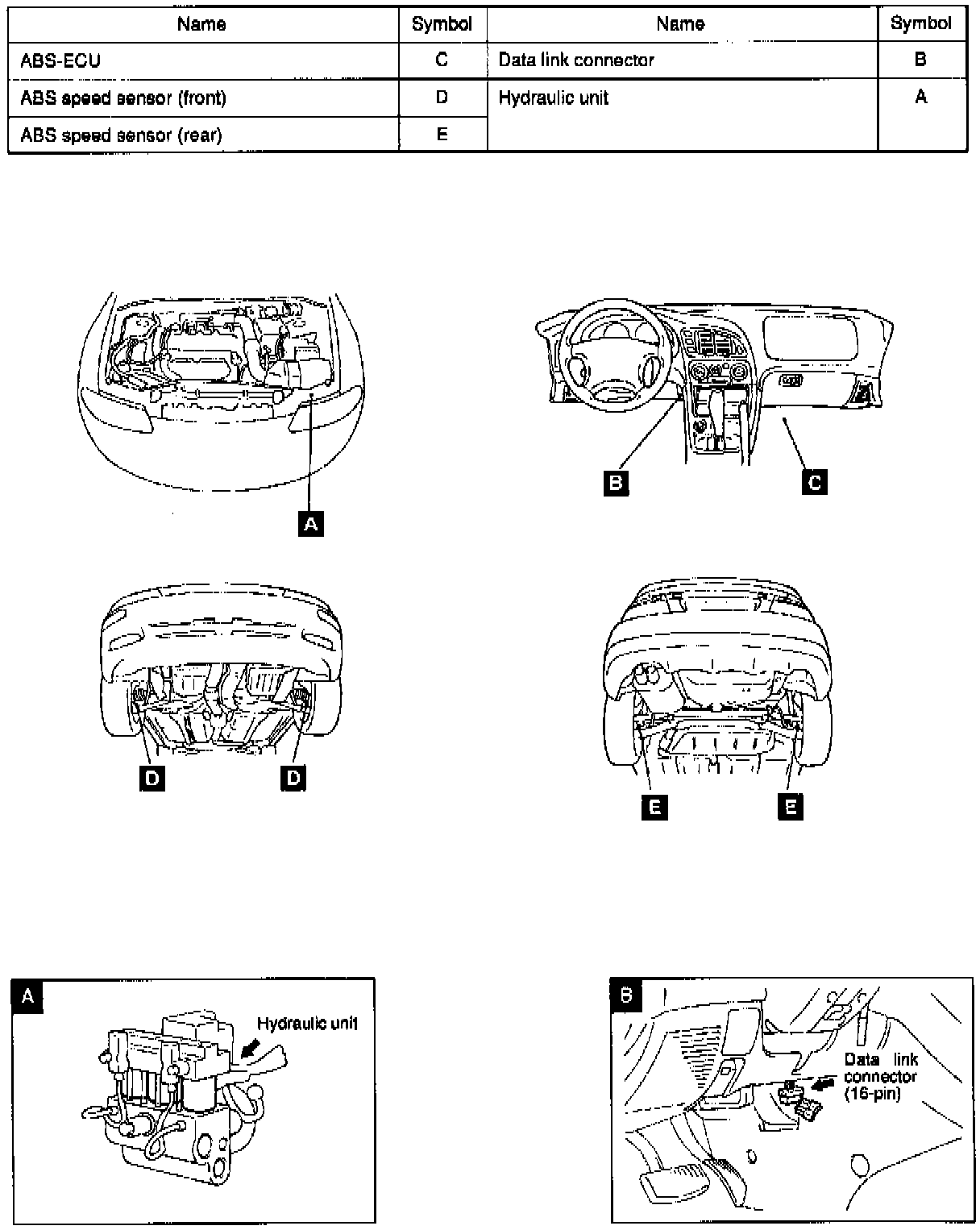

Fig 1 ABS Component Locations (Part 1 Of 2):

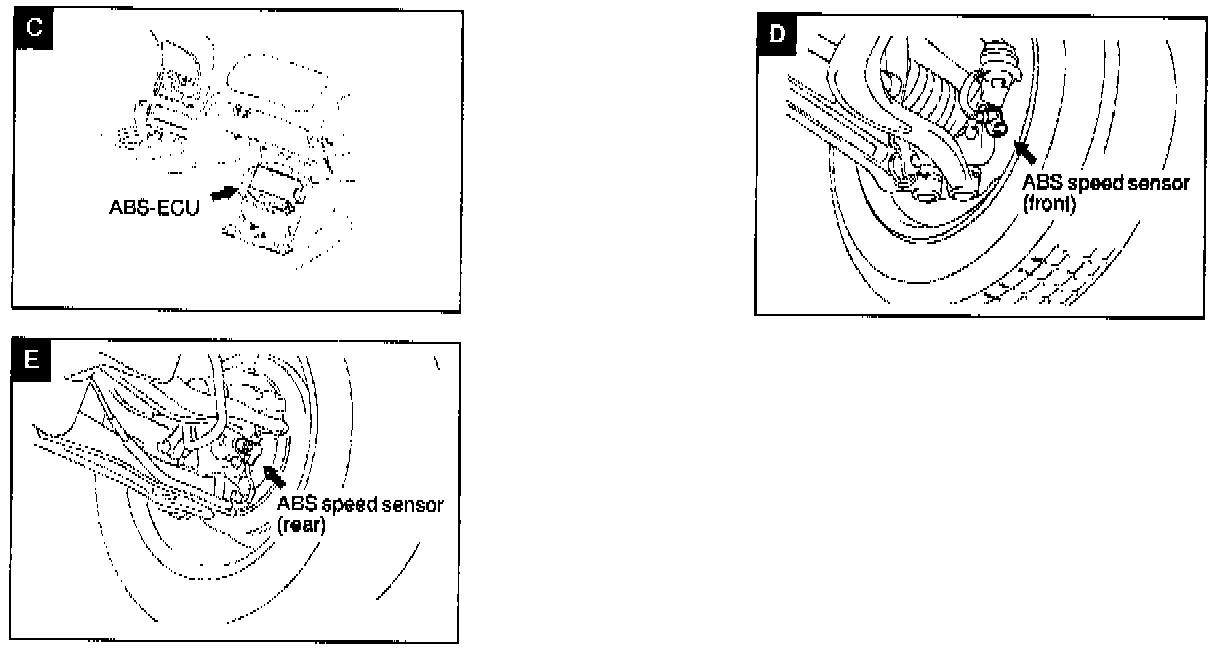

Fig 1 ABS Component Locations (Part 2 Of 2):
