Concorde V6-3.5L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Junction Block Connectors
>>
C1, C2, C9, C10
C1, C2, C9, C10

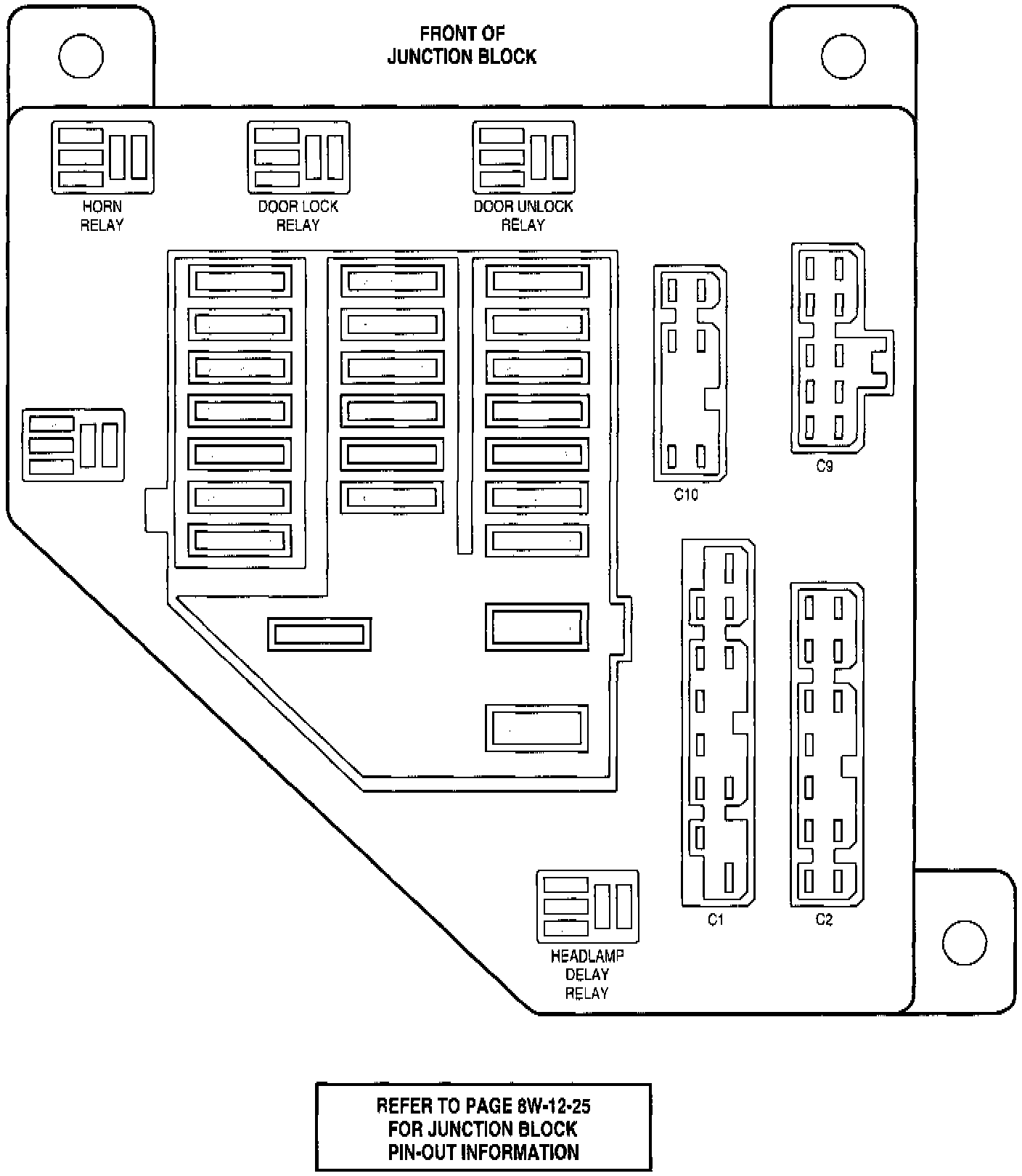

Junction Block:
