Camshaft Oil Seal: Service and Repair

REMOVAL

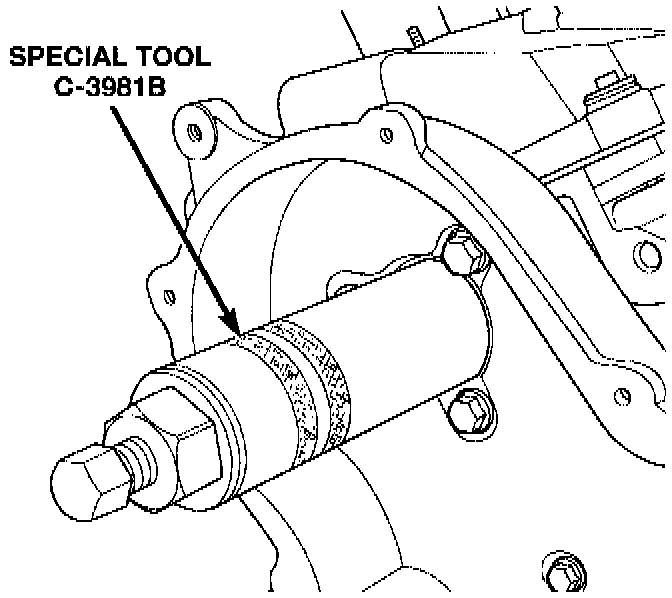

Figure 75-Camshaft Oil Seal-Removal:

1. With camshaft sprockets removed.
2. Use Special Tool C-3981B to remove camshaft oil seal.

INSTALLATION
1. Apply light coat of engine oil to the camshaft oil seal lip.

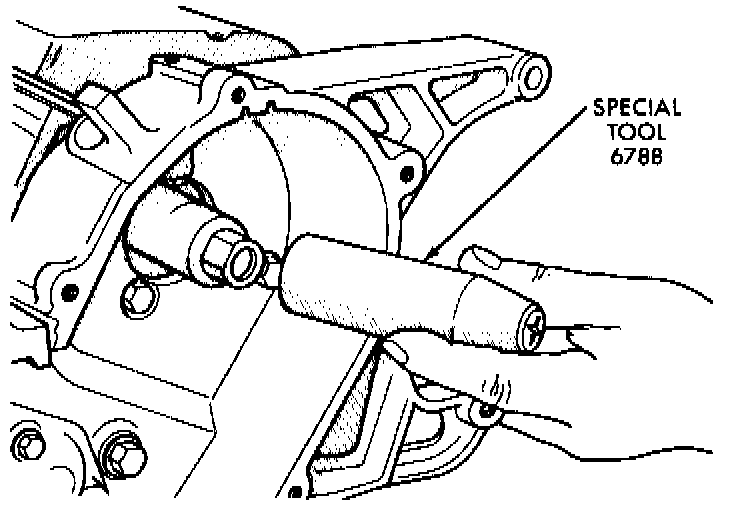

Figure 76-Camshaft Oil Seal Protector Sleeve:

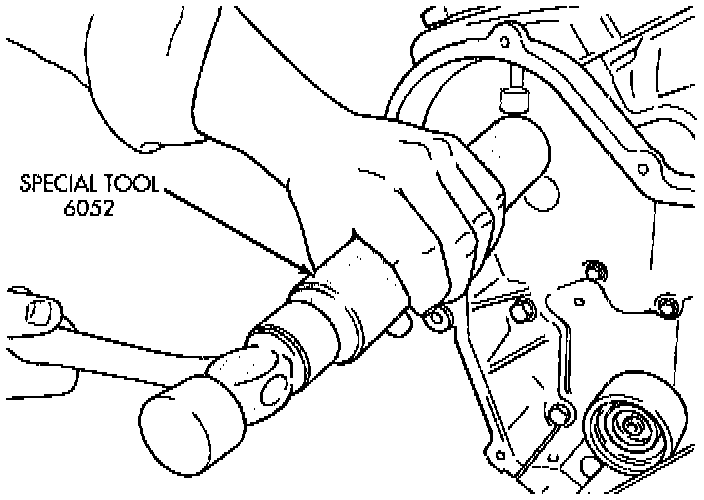

Figure 77-Camshaft Oil Seal-Installation:

2. Install the oil seal using Special Tool 6788 Seal Protector Sleeve and Seal Installer 6052.
