Center Mounted Brake Lamp Bulb: Service and Repair

REMOVAL
1. Release trunk lid latch and open trunk lid.

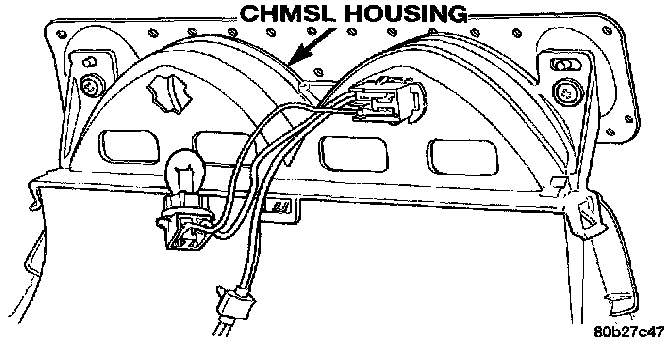

CHMSL - Rear Shelf:

2. From under rear shelf panel, disconnect the lamp socket from the CHMSL housing.
3. Remove bulb from the socket.

INSTALLATION
1. Install the bulb into the socket.
2. Install socket into CHMSL housing.
3. Verify CHMSL operation.
