Drive Belt: Adjustments

BELT TENSION GAUGE METHOD
Use belt tension gauge, Special Tool 7198 for conventional V-belts and Poly-V belts.
Adjust the belt tension for NEW or USED belt tension applications. Refer to Belt Tension Chart.

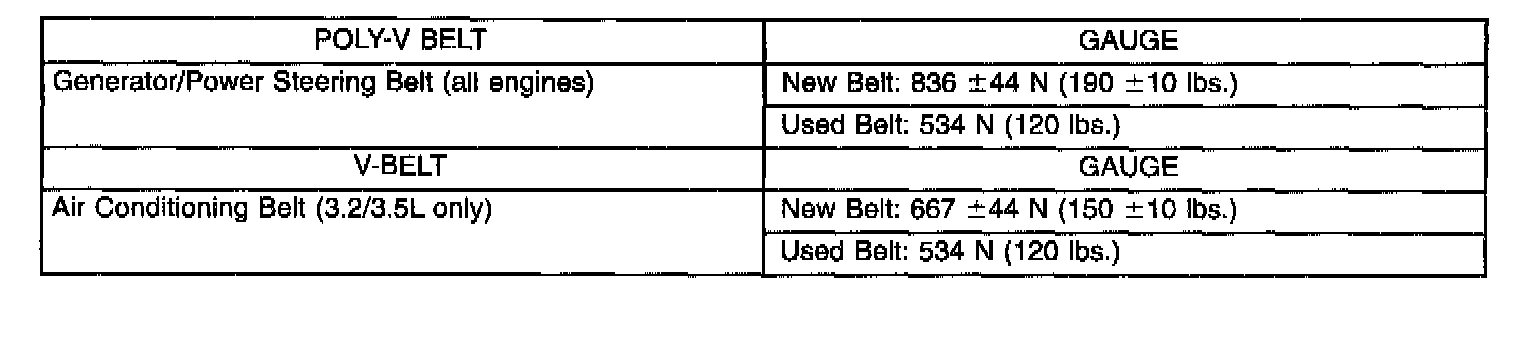

Belt Tension Chart
