Removal
Battery Ground Cable At Shock Tower:
1. Remove the battery ground cable from the ground stud on the shock tower. Then correctly isolate the ground cable by installing the cable isolator on the ground stud.
2. Position the front tires of the vehicle so that they are facing straight ahead.
3. Raise the vehicle on a frame contact type hoist until the front tires of the vehicle are just off the floor.
4. Remove caps from both wiper arms at the attachment to the pivots to expose the wiper arm attaching nut. Remove the nut attaching each wiper arm to its pivot
5. Remove the wiper arms from the pivots. Wiper arms are removed from the pivots by rocking them back and force on the pivots until they can be pulled off the pivots.
6. Remove the wiper module cover and cowl cover from the vehicle.
Reinforcement Attachment To Vehicle:
7. Remove the 8 bolts, attaching the reinforcement to the strut towers and the 1 bolt attaching the wiper module to the reinforcement. Remove the reinforcement from the vehicle.
In-Line Resonator And Air Inlet Hose:
8. Remove the in-line resonator and inlet hose from the throttle body and air let hose coming from the lid of the air cleaner housing.
NOTE: When locking the steering wheel, the front tires of the vehicle are to be facing straight ahead.
9. Using a steering wheel clamp, lock the steering wheel from rotating.
CAUTION: Before removing the steering column coupler from the intermediated steering shaft be sure the steering wheel is locked from rotating. If the steering wheel is allowed to rotate freely after it is disconnected from the intermediated shaft, the clockspring will be damaged and will need to be replaced.
10. Remove the retaining pin and the coupler bolt from the steering column coupler. Separate the intermediate steering shaft from the steering column coupler.
11. Bend back the retaining tabs on the mounting plate for the tie rod to steering gear mounting bolts.
Tie Rod To Steering Gear Attaching Bolts:
12. Remove the bolts, mounting plate and washers attaching the tie rods to the steering gear. Lay the tie rods on top of the transaxle bell housing.
NOTE: The following step should be done to prevent excessive spilling of power steering fluid when the power steering fluid lines are removed from the steering gear.
13. Using a siphon pump, remove as much power steering fluid as possible from the power steering fluid reservoir.
14. Remove the power steering fluid pressure hose and return hose from the steering gear.
Wiring Harness Connection To Solenoid:
15. If the steering gear being removed from the vehicle is a speed proportional steering gear, remove the wiring harness connector from the solenoid on the steering gear.
Master Cylinder To Vacuum Booster Mounting:
16. Remove the 2 nuts mounting the master cylinder to the vacuum booster.
17. Remove the master cylinder with the brake tubes connected, from the vacuum booster. Carefully position the master cylinder in an upright position on the left side valve cover of the engine.
18. Remove the vacuum supply hose to the vacuum booster at the check valve in the vacuum booster. Position the vacuum hose out of the way.
Steering Gear Attachment To Crossmember (Left Side):
19. Remove the 2 bolts attaching the left side of the steering gear to the crossmember.
20. Remove the 2 bolts attaching the steering gears right side mounting bracket to the crossmember.
Steering Gear Mounting Bracket:
NOTE: It may be necessary to loosen the 2 mounting bolts attaching the right mounting bracket to the steering gear in order to clear the air conditioning lines.
21. Slide steering gear and intermediate shaft forward into the engine compartment to allow access to the roll pin retaining the intermediate shaft flex coupler to the steering gear shaft.

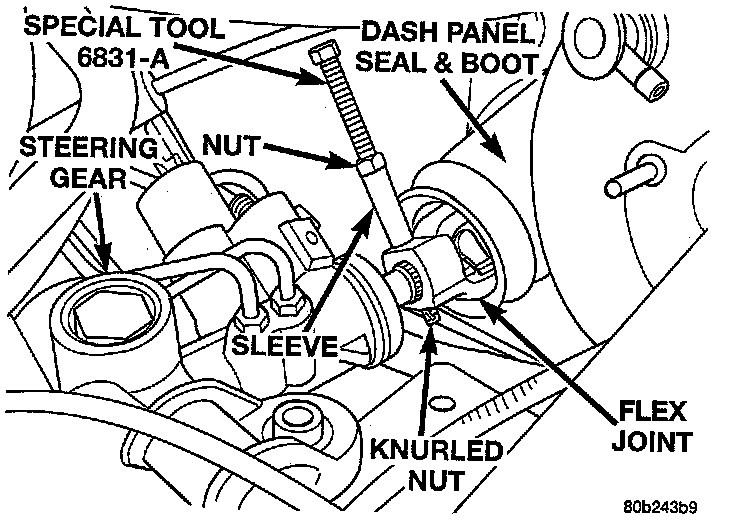

Steering Coupler Roll Pin Removal:
22. Using roll pin remover, Special Tool 6831A, remove roll pin from flex joint of intermediate shaft. Roll pin is removed from coupler using following procedure. Remove knurled nut from small end of removal tool. Insert small end of removal tool through center of roll pin and then install and hand tighten knurled nut. Position sleeve of removal tool on flex joint as shown. Holding threaded shaft of tool from turning tighten nut pulling roll pin out of flex joint.
23. Separate the intermediate steering shaft from the steering gear.
24. Raise vehicle.
25. Remove the right front tire/wheel.
Tie Rod End Attachment To Strut:
26. Remove the nut attaching the tie rod end to the steering arm on the right strut.
Removing Outer Tie Rod From Steering Arm:
27. Remove the tie rod end from the steering arm of the strut using Puller, Special Tool C-3894-A, or equivalent.
28. Remove the tie rod from the vehicle.

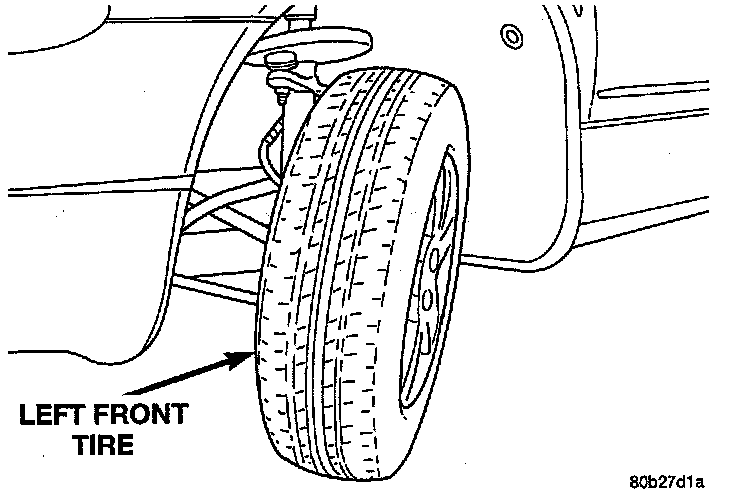

Required Toe Position:
NOTE: If the vehicle is equipped with a 2.7 liter engine, rotate the front of the left front tire/wheel as far outward as possible. This is necessary to have the required clearance to allow the removal of the steering gear from a vehicle with this engine application.
29. Remove the steering gear from the vehicle using the following steps.

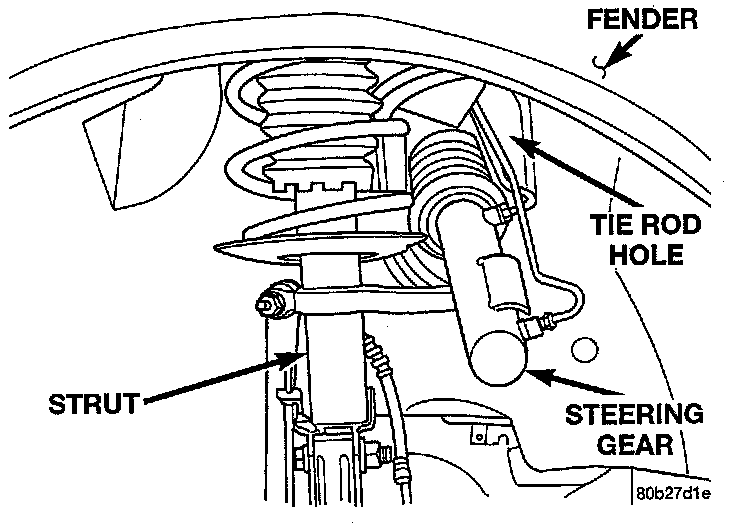

Steering Gear Through Tie Rod Hole:
a. Slide the end of the steering gear through the tie rod hole in the right side inner fender. Steering gear needs to be slid through tie rod hole until about half of the steering gear is through the hole.

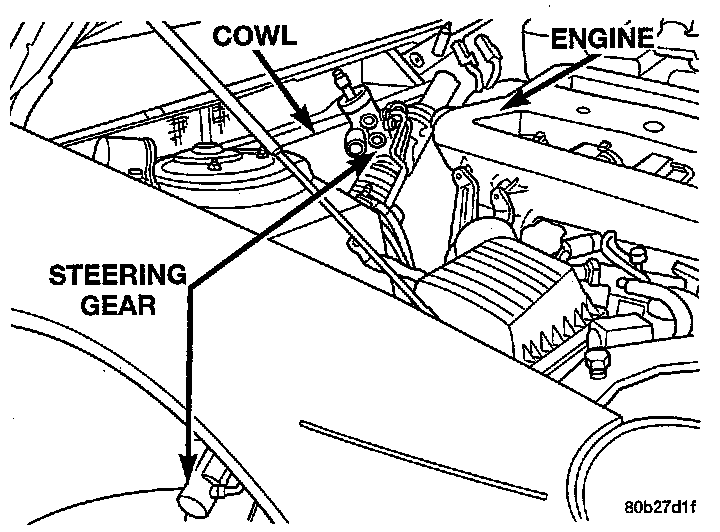

Steering Gear Positioned For Removal:
b. Lift the left end of the steering gear upward, with the steering gear positioned as shown, between the back of the engine and the front of the cowl.
c. To remove the steering gear from the vehicle, pull the steering gear toward the passenger side of the vehicle out from between the cowl and the engine.
