Center Mounted Brake Lamp: Service and Repair

Center High Mounted Stop Lamp (CHMSL) Housing Replacement

REMOVAL
1. Release decklid latch and open decklid.
2. Remove decklid cover.

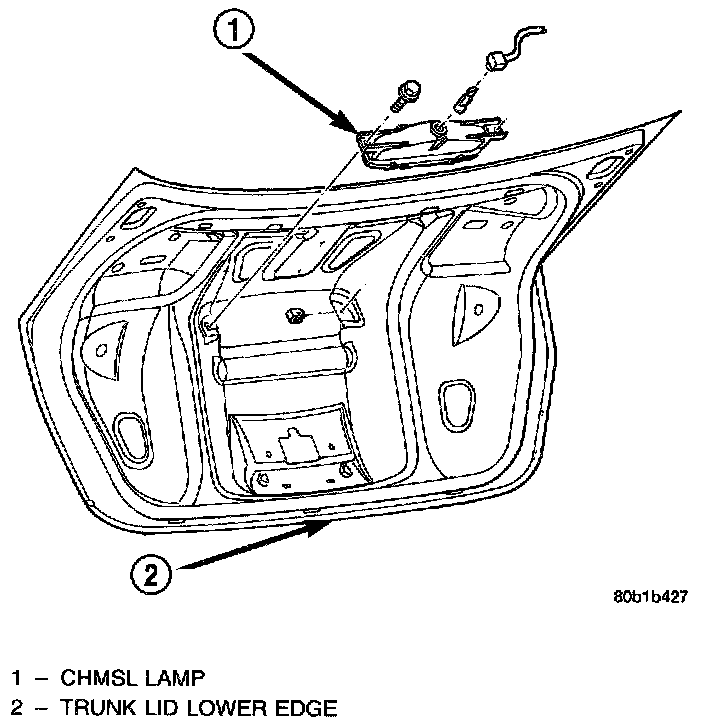

CHMSL:

3. Disconnect CHMSL wire connector from body harness.
4. Remove fasteners attaching CHMSL to the decklid.
5. Remove CHMSL from decklid.

INSTALLATION
1. Place CHMSL in position on decklid.
2. Install fasteners attaching CHMSL to decklid.
3. Connect CHMSL wire connector to body harness.
4. Verify CHMSL operation.
5. Install decklid cover.
