License Plate Lamp: Service and Repair

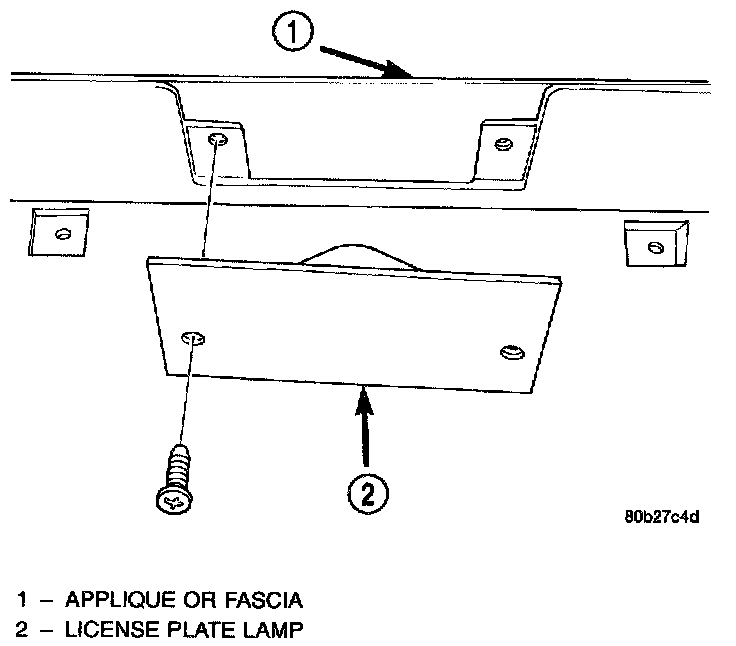

License Plate Lamp - Rear Bumper Fascia Replacement

REMOVAL

License Plate Lamp:




1. Remove screws holding license plate lamp to fascia.
2. Remove license plate lamp from vehicle.

INSTALLATION
1. Place license plate lamp in position on vehicle.
2. Install screws to attach license plate lamp to fascia.
