Secondary Sill Weatherstrip

SECONDARY SILL WEATHERSTRIP

REMOVAL

1. Open front door.
2. Using fork tool C-4828, disengage push in fasteners attaching secondary sill weatherstrip to bottom of door.

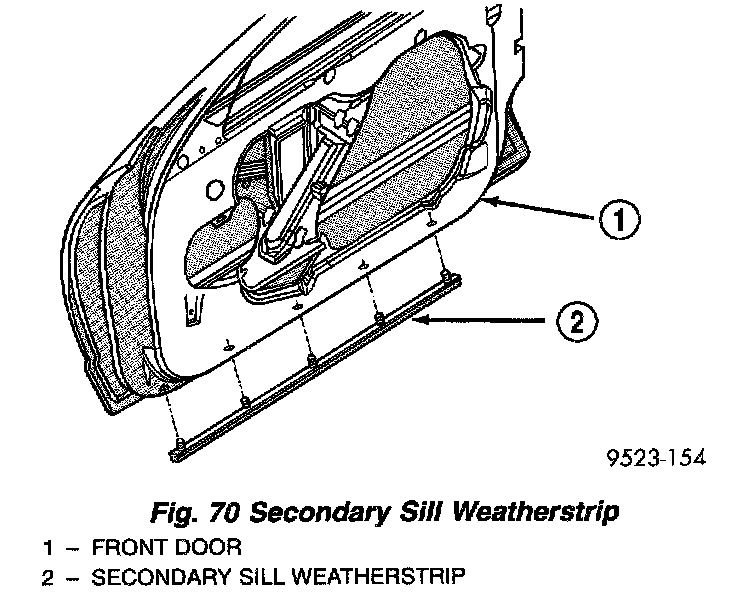

Fig. 70:

3. Remove secondary sill weatherstrip from vehicle (Fig. 70).

INSTALLATION

1. Place secondary sill weatherstrip into position.
2. Install push in fasteners attaching secondary sill weatherstrip to bottom of door.
3. Close front door.
